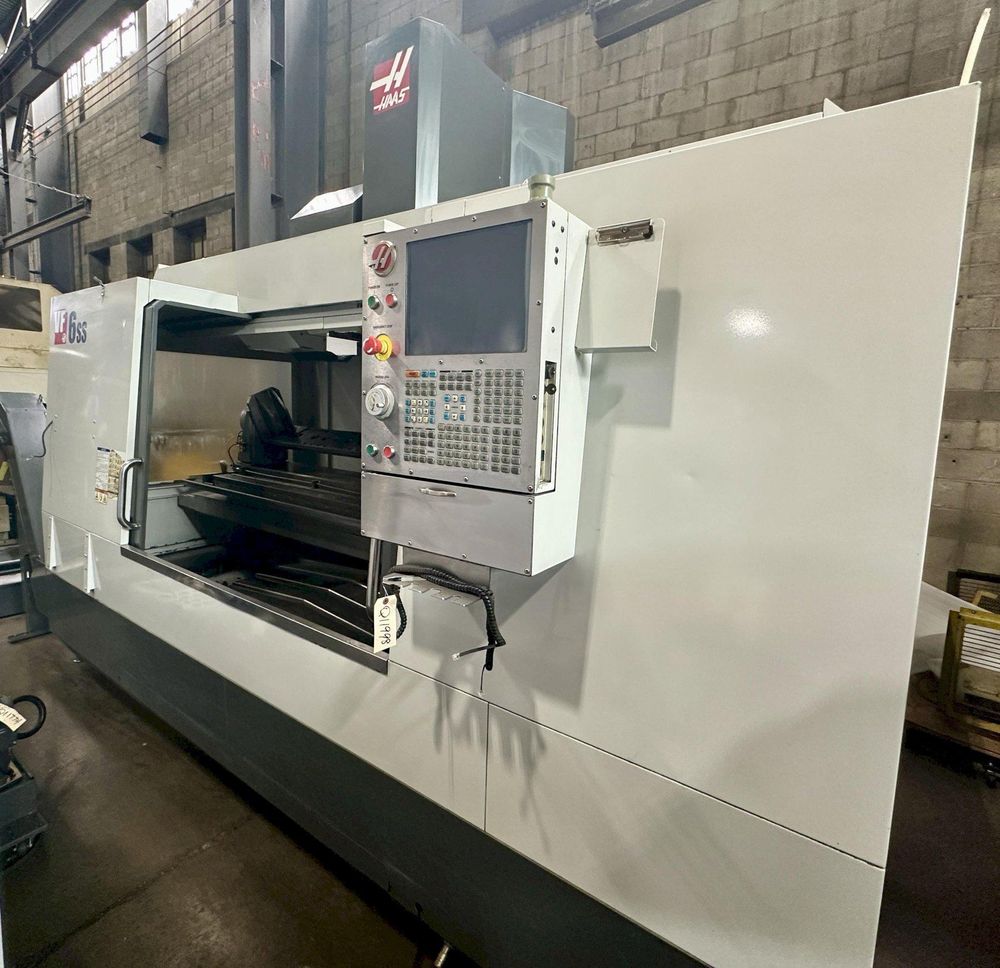

Haas VF-6SS 4 Axis

HAAS VF-6SS
Year 2010

CNC Control yes
Type of CNC Control Haas CNC Control
# Axis 4
Table Length 64"
Table Width 28"
Table Load Capacity 2,000 LBS

X-Axis (Longitudinal Travel) 64"
Y-Axis (Cross Travel) 32"
Z-Axis (Vertical Travel) 30"

Max Clearance Tabletop to Spindle Nose 34"
Min Clearance Tabletop to Spindle Nose 4"
Feed Rates, All Axes 833 IPM

X-Axis Rapid Traverse Rate 900 IPM
Y-Axis Rapid Traverse Rate 1200 IPM
Z-Axis Rapid Traverse Rate 1200 IPM

Spindle Power 40 HP
Max Spindle Speed 12,000 RPM
Spindle Taper CAT 40
Torque, Up To 90 FT-LBS @ 2000 RPM
Automatic Tool Changer Capacity (ATC) 24
Automatic Tool Changer Style Side-Mount
Electrics 440/3/60

Approximate Machine Dimensions 204" x 108"
Approximate Machine Height 123"
Approximate Machine Weight 22,300 LBS
