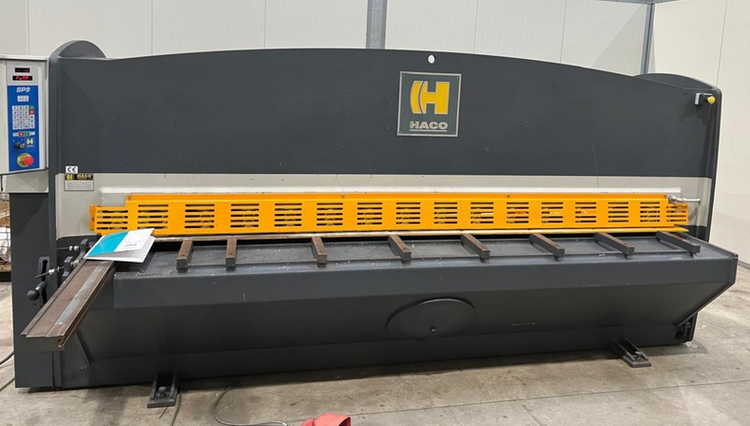

Haco TS 3006

Sheet width 3050 mm
Plate thickness 6 mm
Rear stop 1000 mm
Cutting angle 0.5 - 3°
Down holder 18 pcs
No. of strokes 8 - 14 / min
Total power requirement 7.5 kW
Machine dimensions 3700 x 2000 x 1700 mm
Weight 5000 kg
NC control
Electr. / hydraulic CNC swing cut shears
CYBELEC CNC touch screen controller CybTouch 8
Backgauge preselection X axis
Cutting gap adjustment
Number of pieces
Cutting length limitation
Material preselection including sheet thickness
Cutting line lighting
Motorized backgauge, travel 1000 mm (X axis)
Backgauge on ball screws
Backgauge automatically folds up at max travel
1x side stop
2x front support arms
Ball rollers in front support table
Hinged finger protection with safety switch
BOSCH / HOERBIGER hydraulic system
SIEMENS electrical system
Light barrier behind the machine
Foot switch
CE mark / declaration of conformity
User manual
Pneumatic sheet metal holding device
