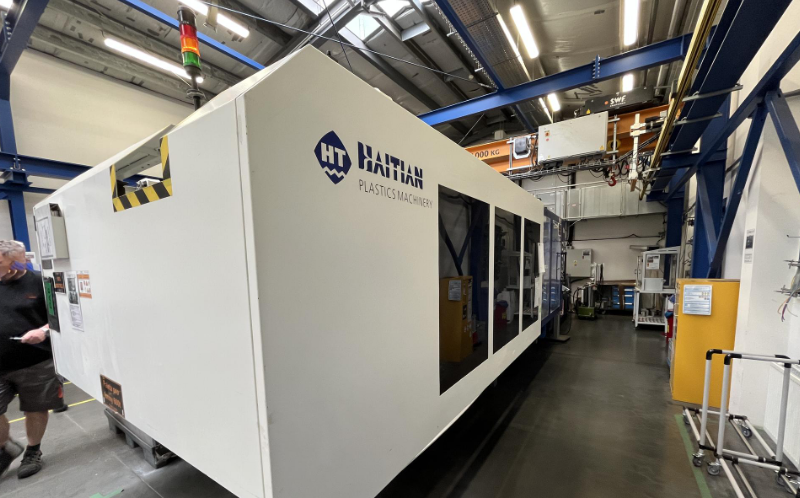

Haitian MA6000II 600 T

Clamping Force 6000 kN
Space Between Tie-Bars (HxV) 880 × 880 mm
Die-Height Available (Max.) 980 mm
Die-Height Available (Min.) 380 mm
Mold Opening Stroke 980 mm
Open Daylight 1880 mm
Ejector Stroke 240 mm
Ejector Force 158 kN
Screw Diameter 70 mm
Calculated Injection Volume 1424 cm³
Injection Capacity (PS) 1296 g
Injection Speed Rate 381 g/s
Plasticization Capacity 64.7 g/s
Injection Pressure 207 MPa
Injection Stroke 370 mm
Screw Speed 0–180 r/min
Heating Input Power 37.6 kW
Ejector Number 13 pcs
Pump Motor Power 80 kW
Oil Tank Capacity 830 l
Machine Dimension (L×W×H) 10.3 × 2.3 × 2.6 m
Total Machine Weight (approx.) 26.8 t
Minimal Mold Dimension (L×W) 590 × 580 mm
