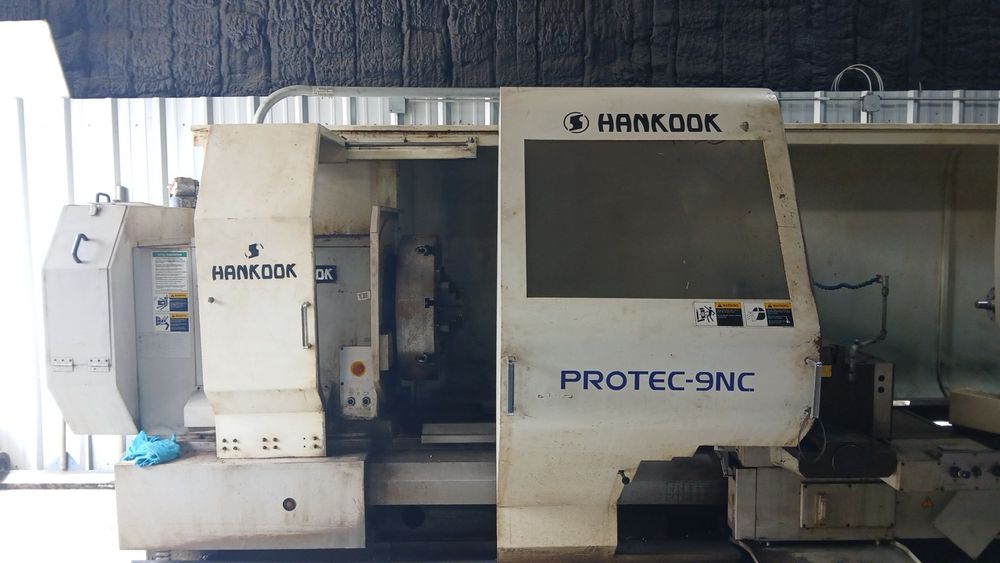

Hankook Fanuc 21i-TB Control 630 RPM PROTEC 9NC 2 Axis

Feedrate, Rapid and/or Axis travel:
X-axis travel: 21.1″
Z-axis travel: 151″
Rapid traverse X: 157.6 IPM
Rapid traverse Z: 236 IPM

Control and features:
Fanuc 21i-TB Control

Bar capacity and swing:
Max swing over bed: 37.4″
Max swing over cross slide: 24.8″
Distance between centers: 157.48″
Maximum turning length: 151″

Spindle specs:
Spindle bore: 9.875″
Spindle speed range: 3 – 630 RPM
Main motor: 35 hp, 2 speed

Feedrates:
Tailstock quill travel: 9.85″
Tailstock quill diameter: MT #6

Chuck and tooling:
Front chuck: 24″ manual
Rear chuck: 24″ manual
8 position turret

Machine size, weight, and any additional equipment:
Dimensions: 255″ x 87″ x 73″
Weight: 20,200 lbs

Tooling available
02 steady rest
01 follow rest
Chip conveyor
