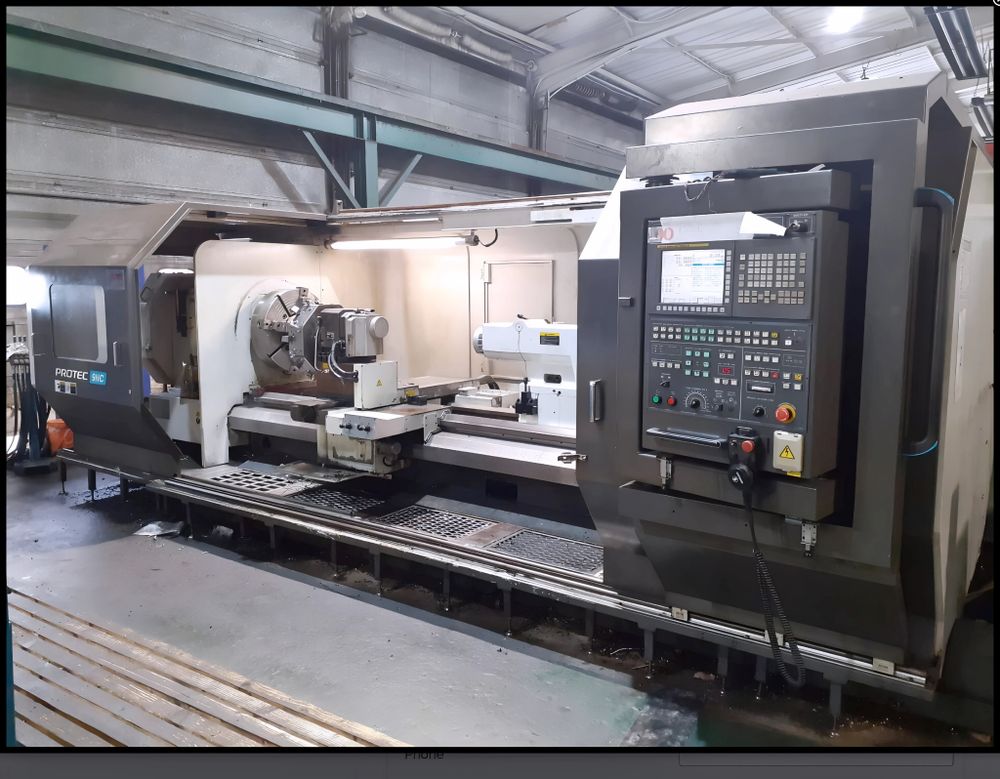

Hankook FANUC 32i Model B 630 rpm PROTEC 9NC 2 Axis

X-axis travel: 535 mm
Z-axis travel: 2845 mm
Control: FANUC 32i Model B
Spindle bore: 254 mm
Spindle nose: A2-15
Spindle speed: 2–630 rpm
Spindle motor power: 18 kW
Swing: 950 mm
Swing over carriage: 630 mm
Tailstock quill diameter: 180 mm
Tailstock taper: MT #6
Turret positions: 8 stations
Rapid feedrate XZ: 4 × 6 m/min
Maximum cutting length: 2845 mm
Machine dimensions: 7000 × 2205 × 1850 mm


4-jaw chuck
Automatic toolpost
Automatic wire threading
Coolant
Fixed steady
Interlocked guards
Low volt light
Oil country lathe
Rear mounted chuck
Swarf conveyor
Tailstock
