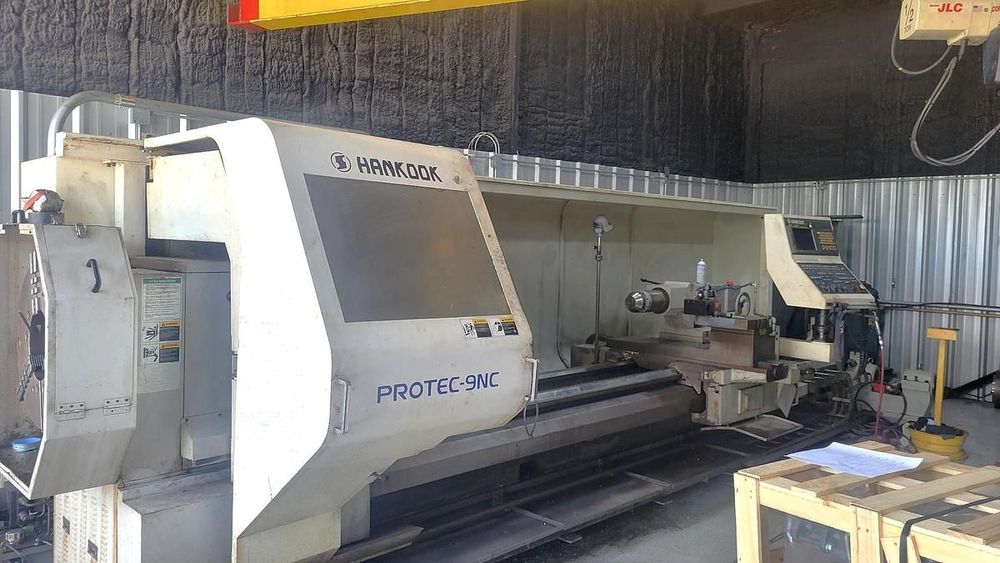

Hankook Fanuc 21i-TB Control 630 RPM PROTEC 9NC/4000 2 Axis

HANKOOK PROTEC 9NC/4000
2006

Swing 37.43"
Swing Over Cross Slide 24.8"
Distance Between Centers 157.6"
Spindle Speed Min 3 RPM
Spindle Speed Max 630 RPM
Spindle Bore 10"
Main Motor 35 HP
Spindle Nose A2-15
Turret Positions 8
X-Axis Travel 21.1"
Z-Axis Travel 151"
Tailstock Quill Diameter 9.85"
Tailstock Taper MT #6
Fanuc 21i-TB Control
Chip Conveyor
25" 4 Jaw Manual Chuck with 10" hole (Front)
25" 3 Jaw Manual Chuck with 10" hole (Rear)
8 Station Turret on Cross Slide
Dorian Tool Post on Cross Slide
Heavy Duty Tailstock
2 Roller Type Steady Rests
1 Follower Rest
Long Boring Bar Attachment
Remote Jog Handle
Enclosed with Slide Doors
Work Light
Coolant System with Tank & Pump
Hard Disk Interface
RS 232 Port Interface
All Available Manuals & Tooling
6,069 Run Time Hours
