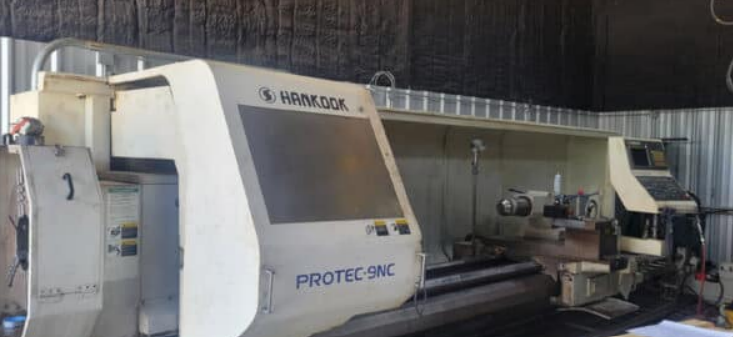

Hankook Fanuc Series 21i-TB CNC 630 rpm PROTEC 9NC 2 Axis

Ref : 2808328-3-GO

Condition : Used

Manufacturer : Hankook

Controller : Fanuc Series 21i-TB CNC

Spindle Speed : 630 rpm

Model : PROTEC 9NC

Nb Of Axis : 2 Axis

Year(s) : 2006

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Control: Fanuc Series 21i-TB CNC
Swing over bed: 950 mm (37.4")
Swing over carriage: 630 mm (24.8")
Maximum turning diameter: 950 mm (37.4")
Maximum turning length: 3835 mm (151")
Distance between centers: 3988 mm (157")
Load capacity between centers: 4990 kg (11,000 lb)
Spindle bore: 254 mm (10")
Spindle nose: A2-15
Spindle speed: 2–630 rpm
Spindle motor: 22/26 kW (30/35 HP)
Chuck: 24" 4-jaw manual main chuck
Rear chuck: 24" 3-jaw manual chuck
Turret: 8 stations
Tailstock
Tool post
(2) Manual steady rests
Follow rest
Chip conveyor
