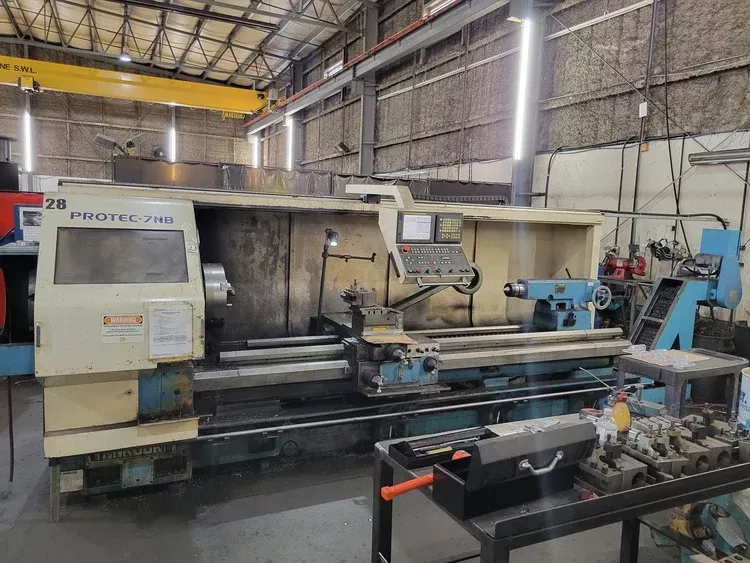

Hankook FANUC 21iTB CNC control 1000 RPM PROTEC 7NB 2 Axis

HANKOOK PROTEC 7NB
Year: 2000

Swing over bed: 29.5"
Turning diameter: 18.9"
Machining length: 120"
Distance between centres: 118.1"
Chuck size: 20"
Spindle nose: A2-11
Spindle bore diameter: 7.0"
Spindle bar capacity: 7.0"
Spindle speeds: 1000 RPM
Gear ranges: 2
Spindle horsepower: 20 HP
X-axis travel: 16.7"
Z-axis travel: 115.5"
Rapid traverse rate X-axis: 118 IPM
Rapid traverse rate Z-axis: 236 IPM
Turret configuration: CURVIC TOOL POST
Tailstock quill diameter: 4.4"
Tailstock taper: MT 6
Tailstock quill travel: 7.9"
Machine weight: 10,730 lbs
Tailstock
Manual Guide I conversational control
20" 3-jaw manual chuck with 7" hole
Guidance hand wheels for 2-axis control
X-axis and Z-axis electronic manual handwheels
6600 lbs load between centres
Chip conveyor
FANUC 21iTB CNC control
