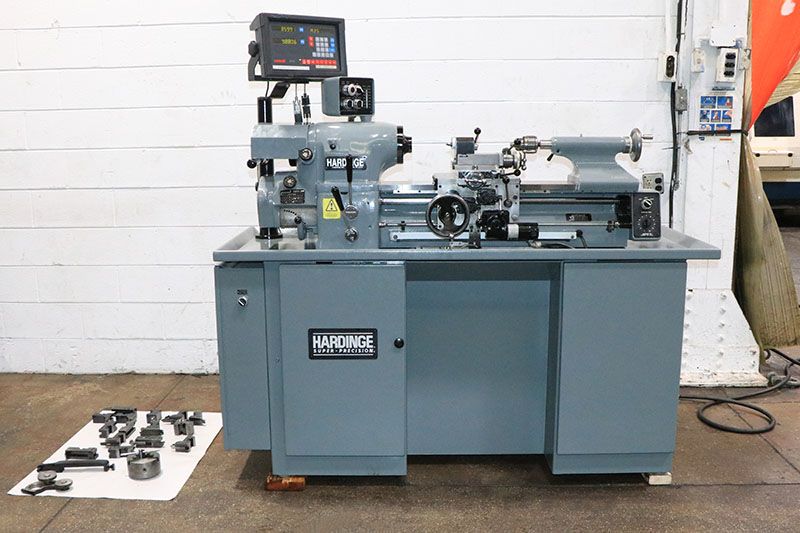

Hardinge Engine Lathe 3000 rpm HLV-H Reground Bed & New Turcite

HARDINGE HLV-H Reground Bed & New Turcite
2025

Spindle construction Hardinge ball bearing
Spindle nose thread Hardinge tapered
Variable spindle speeds 125 - 3000 rpm
Hole through spindle 1.25"
Swing over bed 11"
Swing over carriage 9"
Swing over cross slide 6"
Distance between centers 18"
Compound slide travel 3"
Carriage power feed range 5/16 - 7 ipm
Cross slide power feed range 3/16 - 4 ipm
Tailstock spindle diameter 1.375"
Tailstock spindle taper #2 MT
Range of threads in gear box 11 - 108 TPI
Approximate weight 1700 lbs
Reground bed plate
New Turcite under carriage
Hardinge cross slide reground
New Hardinge cross feed nut
Ball bearing quick acting 5C collet closer
Heavy duty full bearing tailstock
Newall two axis digital readout
5" Hardinge 3-jaw chuck
KDK quick change toolpost with holders
5/8" capacity Jacobs drill chuck
Live center
Assortment of 5C collets
Self-contained coolant system
Two-speed main drive motor 1 / 0.5 hp
Wired for 460 volt operation
