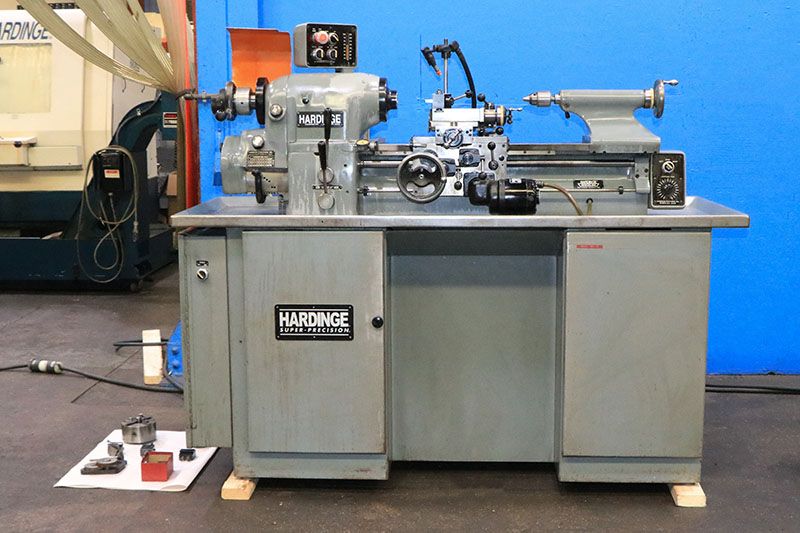

Hardinge Engine Lathe 3000 rpm HLV-H

HARDINGE HLV-H
Year: 1980

Spindle construction: Hardinge super-precision preloaded ball bearing
Spindle nose: Hardinge tapered
Infinitely variable spindle speeds from: 125 rpm
Infinitely variable spindle speeds up to: 3000 rpm
Hole through spindle: 1-1/4"
Spindle capacity with round 5C collets: 1-1/16"
Spindle capacity with hexagon 5C collets: 7/8"
Spindle capacity with square 5C collets: 3/4"
Spindle capacity with step chucks: 1-1/16" to 6"
Spindle capacity with jaw chucks: 5"
Spindle capacity with expanding collets: 3"
Swing over bed: 11"
Swing over carriage: 9"
Swing over cross slide: 6"
Distance between centers: 18"
Compound slide travel: 3"
Carriage power feed range: 5/16" to 7" IPM
Cross slide power feed range: 3/16" to 4" IPM
Tailstock spindle diameter: 1-3/8"
Tailstock spindle travel: 3-3/4"
Tailstock spindle taper: #2 MT
Threading range: 11 to 108 TPI (27 threads)
Machine dimensions (LxWxH): 65" x 28" x 58"
Machine weight: 1,700 lbs
Lever type 5C collet closer
Solid full bearing tailstock
5" diameter Hardinge 3-jaw chuck
Hardinge quick change toolpost and holders
Hardinge four-position indicator stop for cross slide
Hardinge indicator stop for carriage
Assortment of 5C collets
Jacobs drill chuck for tailstock
Coolant system
0.5 / 1 horsepower two-speed motor
Wired for 230 volt operation
