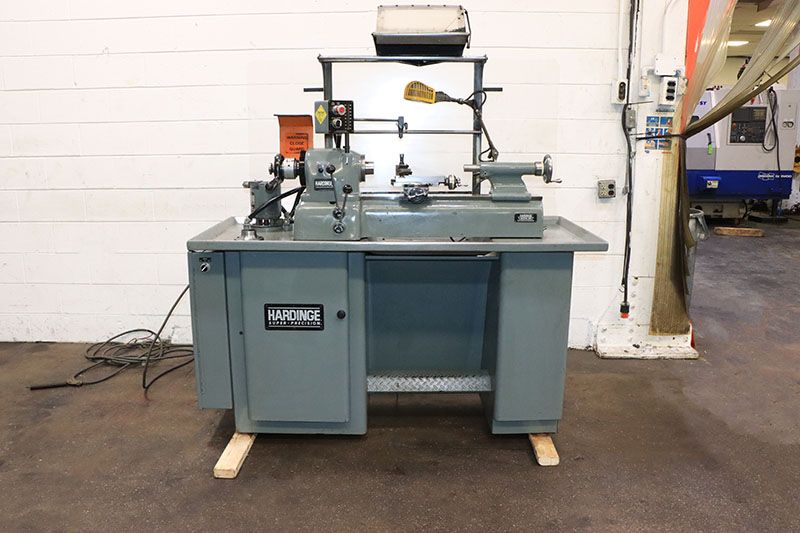

Hardinge Engine Lathe 3500 rpm DV59, 5C Collet, Compound & Tailstock, Vari-Speed

spindle capacity with round 5C collets 1-1/16 in
spindle capacity with hexagon 5C collets 7/8 in
spindle capacity with square 5C collets 3/4 in
step chucks 1-1/16 in to 6 in
jaw chuck size 5 in
jaw chuck through spindle 1-5/32 in
swing over bed 9 in
distance between centers 17 in
travel of top slide 4-1/4 in
travel of bottom slide 5 in
travel of tailstock spindle 3-1/2 in
tailstock spindle taper #3 MT
spindle taper 2-3/16 in RH
variable spindle speed 230 to 3500 rpm
Hardinge toolmaker's compound
Hardinge full bearing tailstock
push-button variable speed control
ball bearing lever-type 5C collet closer
coolant system
230 V / 3 PH
two-speed drive motor
weight 1150 lbs.
