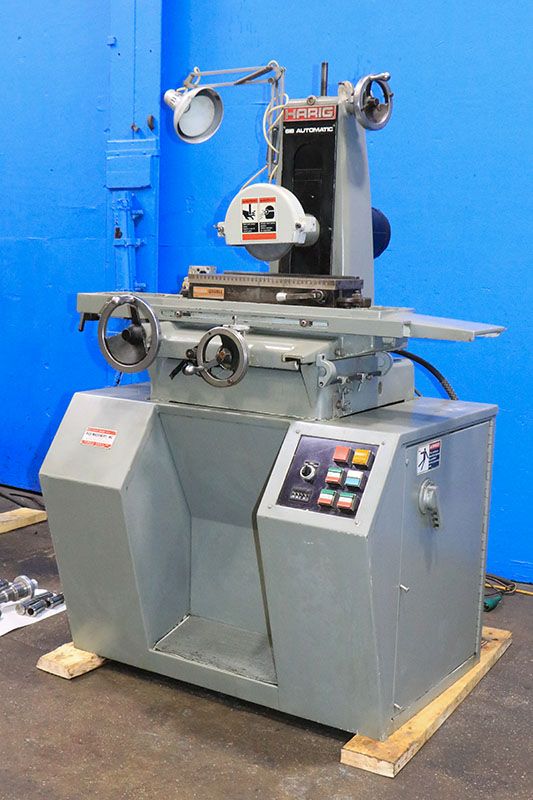

Harig 618 AUTOMATIC

HARIG 618 AUTOMATIC
Year: 1987

Grinding Type: Surface Grinder
Table Size: 6" x 18"
Longitudinal Travel: 18.75"
Cross Travel: 6.75"
Longitudinal Table Speed: 0 to 70 FPM
Cross Feed Increment Per Table Pass: 0.0005" to 0.9995"
Max Working Height Under Wheel: 11.75"
Grinding Wheel Size (D x W x B): 7" x 0.5" x 1.25"
Vertical Hand Wheel Graduation: 0.0005"
Crossfeed Hand Wheel Graduation: 0.001"
Floor Area Operating Space: 71" x 45"
Approximate Weight: 1,500 lbs
Spindle Motor: 1 HP, 3-phase, 60 Hz, 208–230/460V
Current Wiring: 3-phase, 60 Hz, 220V

Hydraulic table traverse
Automatic electro-mechanical power cross feed
Thumbswitch cross feed control
Auto lubrication system (HARIG Flo-Clean)
Fine feed on vertical and cross handwheels
6" x 18" Walker Ceramax fine-division permanent magnetic chuck
Coolant system with guarding, tank, and pump
Work light
Direct drive cartridge-type spindle
