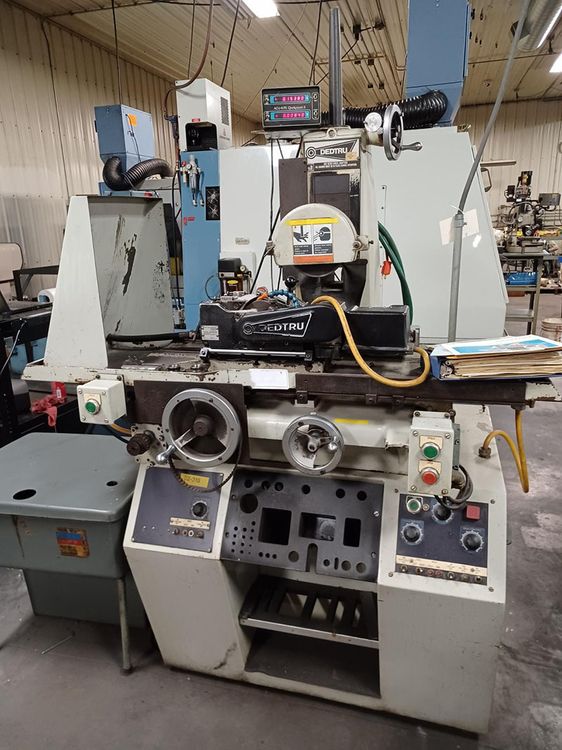

Unison DEDTRU 287-0000

UNISON-DEDTRU 287-0000
1990

Vertical working height above regulating roll 10"
Cross feed travel 6.75"
Longitudinal travel 18"
Table size 6" x 18"
OD work capacity with basic equipment 0.25" to 1.25"
OD work capacity with optional accessories 0.031" to 5"
ID work max OD 5"
Maximum wheel diameter 8"
Maximum wheel length 3"
Approximate weight 1500 lbs
Regulating roll size 4" x 4"
Spindle motor 3 HP
Spindle speed 3600 RPM
Voltage 3/60/230-460
Digital readout Acu-Rite Qwikcount 2-axis
Fine feed knob for vertical axis
Optional fine downfeed knob with 0.0001" graduation
Automatic longitudinal feed cycle
Rapid approach to work
Adjustable feed rate
Adjustable positive stop
Adjustable dwell time
Automatic rapid carriage return
Limit switch control of regulating roll
Regulating roll with DC drive controller
Surface grinder base Harig #618W
C model centerless grinding unit
PGF model centerless grinding unit
Mist system Uni Mist
Laser tool presetter Blum Micro A-3
Touch probe Blum Micro TC-50
12 HSK63A collet chucks balanced to 30,000 RPM
Machine wired for 440 volts
Original paint
Excellent condition
Inspectable under power
