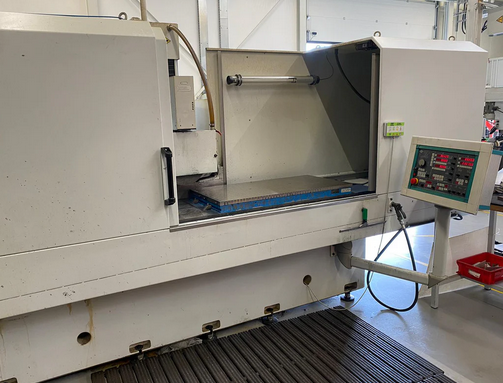

ELB PERFEKT BD 8 SPS

longitudinal travel x-axis 900 mm
cross travel z-axis 540 mm
vertical travel y-axis 400 mm
control Unicon
table length 1360 mm
table width 590 mm
number of t-slots 1
t-slot width 16 mm
grinding length 1250 mm
grinding width 600 mm
grinding height 400 mm
table load max 900 kg
automatic longitudinal feed up to 26 m/min
automatic cross feed up to 2000 mm/min
automatic vertical feed up to 300 mm/min
grinding wheel speed 1440 rpm
grinding wheel diameter 400 mm
grinding wheel width 100 mm
grinding wheel bore 127 mm
spindle cone 60 mm
grinding spindle motor 20 kW
total power 18.5 kW
machine weight 5400 kg
machine length 3800 mm
machine width 2900 mm
machine height 2500 mm
paper filtration system
electrical magnetic chuck 1200 x 600 mm
redressing device
lamp
central lubrication
