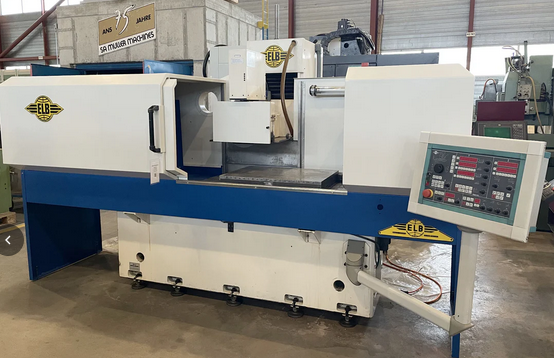

ELB PERFEKT BD 8 SPS

Control: Unicon
Longitudinal Travel (X-Axis): 900 mm
Cross Travel (Z-Axis): 540 mm
Vertical Travel (Y-Axis): 400 mm
Table Size: 1360 x 590 mm
Grinding Length: 800 mm
Grinding Width: 600 mm
Grinding Height: 400 mm
Maximum Table Load: 900 kg
1 T-Slot
T-Slot Width: 16 mm
Automatic Longitudinal Feed: up to 26 m/min
Automatic Cross Feed: up to 2000 mm/min
Automatic Vertical Feed: up to 300 mm/min
Grinding Wheel Diameter: 400 mm
Grinding Wheel Width: 100 mm
Grinding Wheel Bore: 127 mm
Grinding Wheel Speed: 1440 rpm
Spindle Cone: 60 mm
Grinding Spindle Motor: 10 kW
Voltage: 3 x 400 V / 50 Hz
Total Power Required: 18.5 kW
Paper Filtration System
Electrical Magnetic Chuck: 800 x 600 mm
Redressing Device
Lamp
Set of Flanges
Central Lubrication
Oil Mist Extractor: TEBARON
Machine Dimensions: 3800 x 2900 x 2500 mm
Electrical Cabinet Dimensions: 1200 x 500 x 1900 mm
Weight: 5400 kg
