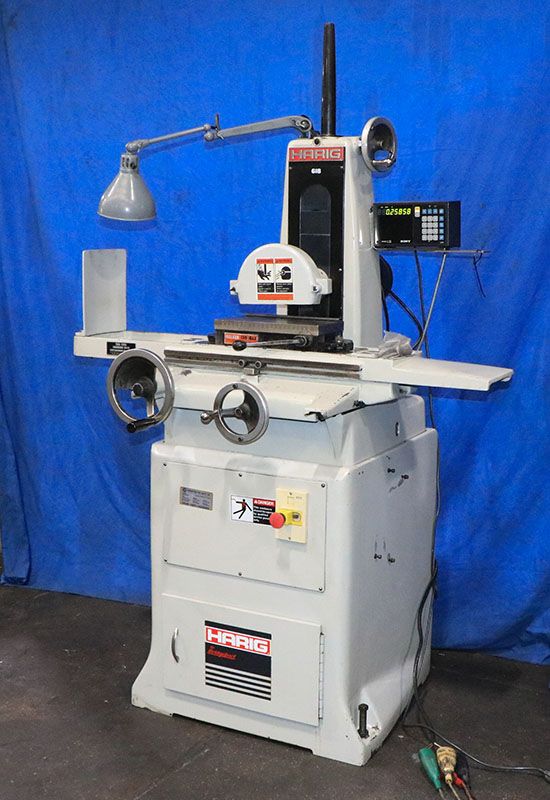

Harig 618

Harig 618
1994

Cast iron base
Sony 1-axis digital readout display
Rack and pinion table drive
6" x 18" fine-division Walker permanent magnetic chuck
Automatic lubrication system
Harig super-precision direct drive cartridge-type spindle
Leeson 1.5 HP spindle motor
Voltage 3/60/230-460

Grinding capacity 6" x 18"
Vertical working height under 7" wheel 11.75"
Longitudinal table travel 20"
Cross travel 6.75"
Grinding wheel 7" x 0.5" x 1.25"
Maximum grinding wheel diameter 8"
Elevating handwheel graduation 0.0005"
Cross handwheel graduation 0.001"
Operating floor space 69" x 45"
Weight 1250 lbs
