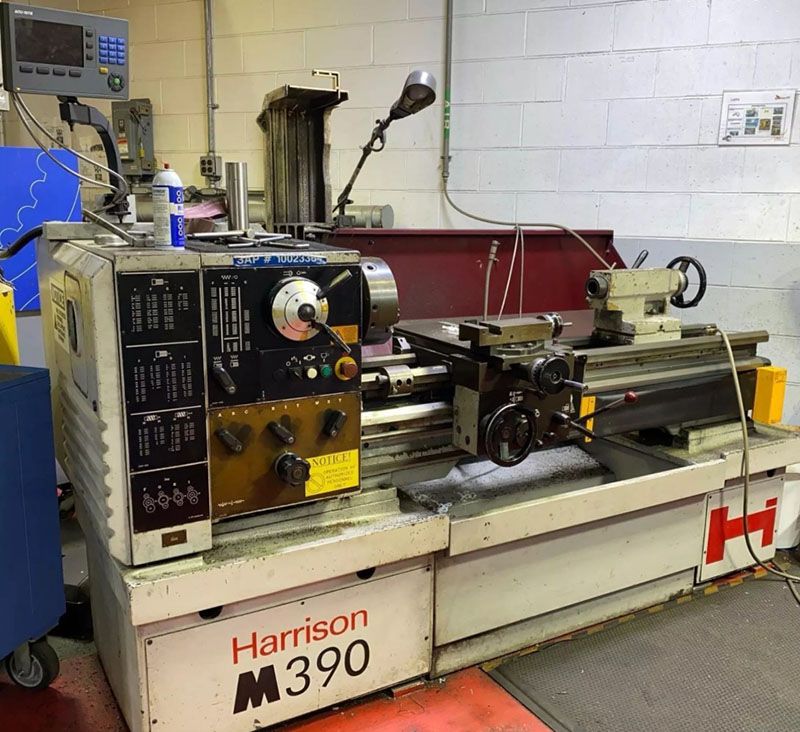

Harrison Engine Lathe 2000 RPM M390

Swing over bed 15.7"
Swing in removable gap 23"
Swing over cross slide 9.7"
Distance between centers 50"
Hole through spindle 2.125"
Spindle nose D1-6 CAMLOCK
Spindle speed range 25 - 2000 RPM
English threading range 2 - 56 TPI
Metric threading range 0.2 - 14 mm
Longitudinal feed range 0.0014 - 0.096 IPR
Cross feed 1/2 of longitudinal setting
Width of bed 12.5"
Cross slide travel 9.8"
Top slide travel 5.1"
Tailstock spindle travel 5.5"
Tailstock spindle taper #5MT
Approximate dimensions 99"L x 49"W x 51"H
Approximate weight 3,500 LBS
Main motor 7.5 HP
Equipped with ACU-RITE digital readout
Equipped with taper attachment
Equipped with 10" 3-jaw buck chuck
Equipped with 12-1/4" Pratt Burnerd 4-jaw chuck
Equipped with faceplate
Equipped with Pratt Burnerd multi-size collet chuck with collets
Equipped with roller type steady rest
Equipped with follow rest
Equipped with headstock center sleeve and center
Equipped with live and dead center for tailstock
Equipped with micrometer carriage stop
Equipped with thread dial indicator
Equipped with coolant system with removable chip pan
