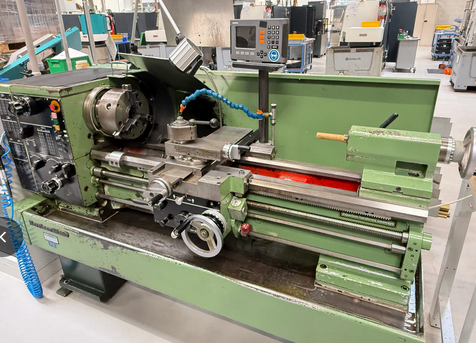

Harrison Engine Lathe 2250 rpm M 350

Centre Height: 190 mm
Distance Between Centres: 1000 mm
Swing Over Cross-Slide: 230 mm
Swing Over Bed: 380 mm
Spindle Hole Diameter: 54 mm
Spindle Taper: Camlock D1-6
Spindle Speeds Steps: 12
Spindle Speeds From: 40 rpm
Spindle Speeds To: 2250 rpm
Longitudinal Feed From: 0.04 mm/rev
Longitudinal Feed To: 2.24 mm/rev
Cross Feed From: 0.02 mm/rev
Cross Feed To: 1.12 mm/rev
Voltage: 3x 380 V, 50 Hz
Spindle Motor Power: 5.5 kW
Machine Weight: 1800 kg
Machine Dimensions Length: 2200 mm
Machine Dimensions Width: 1000 mm
Machine Dimensions Height: 1400 mm
Digital Readout Axes: 3
3-Jaw Chuck
Folding Three-Jaw Steady
MULTIFIX Quick-Change Toolholder
