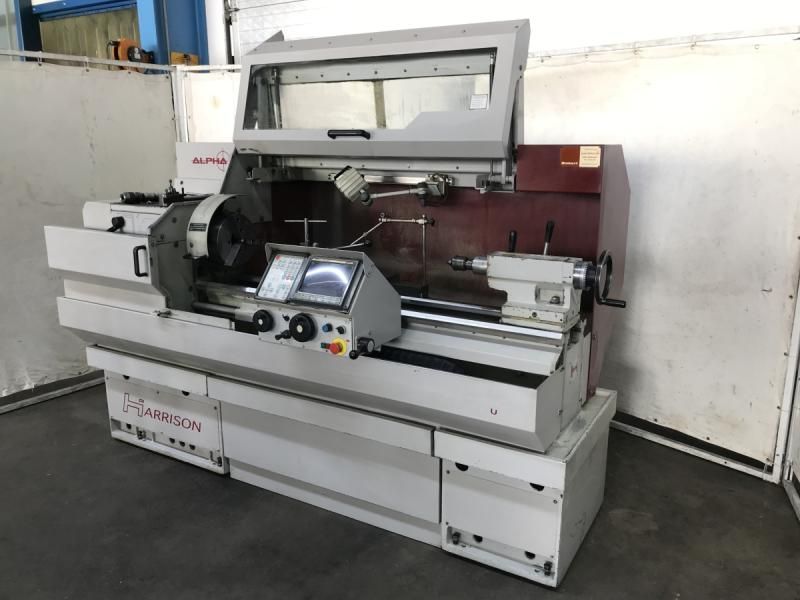

Harrison Engine Lathe 2500 rpm Alpha 400 Plus

Center Distance: 1250 mm
Swing Over Bed: 400 mm
Center Height: 200 mm
Swing Over Cross Slide: 245 mm
Swing in Gap: 585 mm
Bed Width: 313 mm
X-Axis Travel: 250 mm
Tailstock Quill Diameter: 73 mm
Tailstock Quill Travel: 140 mm
Tailstock Quill Taper: MK5
Spindle Bore: 54 mm
Spindle Nose: Camlock D1-6
Spindle Speed: 20–2500 rpm
Speed Range 1: 15–275 rpm
Speed Range 2: 35–795 rpm
Speed Range 3: 110–2500 rpm
Feed Rate (X/Z): 0.03–0.6 mm/rev
Rapid Feed X-Axis: 2000 mm/min
Rapid Feed Z-Axis: 4000 mm/min
Thread Cutting: Metric / Inch / Diametral / Module
Spindle Motor Power: 7.5 kW
Power Supply: 400 V, 50 Hz, 23.5 kVA
Machine Length: 2600 mm
Machine Width: 1450 mm
Machine Height: 1550 mm
Machine Weight: 1950 kg

Equipped With
Cycle Control: Harrison Alpha / GE Fanuc (language: French)
Automatic 3-Step Gear Range Shift
Electronic Handwheels with Multiple Ratios (1/10/100)
FORKARDT 3-Jaw Chuck Ø250 mm Type CSN with Soft Jaws
MULTIFIX Quick Change Tool Post Size B with 2 Holders
Live Center
RÖHM Quick-Action Drill Chuck 3–16 mm
Foldable Chuck Guard
Swing-Open Work Area Safety Doors
Chip Tray with Coolant Unit under Bed
Integrated Electrical Cabinet
RS232 Interface
