Harrison ENGINE LATHE 3000 RPM VS330 TR (AA)

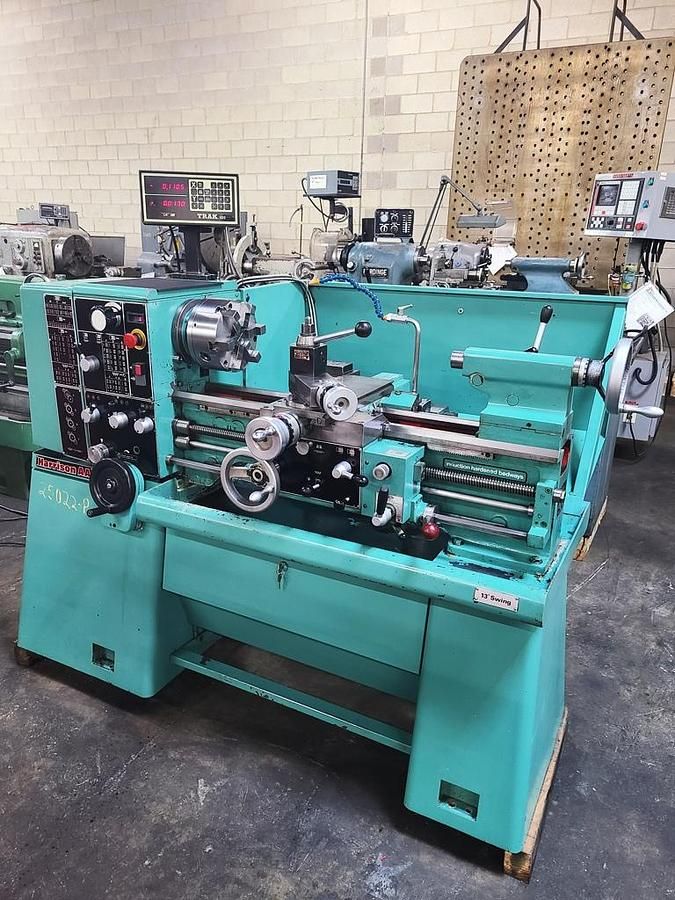

13" X 25" HARRISON ENGINE LATHE
Machine Model No.: VS330 TR (AA)

Swing Over Bed: 13"
Swing Over Cross Slide: 8-1/4"
Swing in Gap: Diameter: 19"
Length: 4-1/2"
Distance Between Centers: 25"
Spindle Bore: 1-1/2"
Spindle Mount: D-4 Camlock
Morse Taper in Nose: No. 5
Spindle Speeds: Infinitely Variable Range from 35 to 3,000 RPM

Feeds:
(16) Metric from .03 to 1 mm Per Revolution
(16) English from .001 to .040 Inches Per Revolution
Cross Slide Feed Values are Half of Carriage

Threads:
(39) Metric Pitches from .2 to 14 mm
(35) English Pitches from 2 to 56 TPI
(18) Module Pitches from .3 to 3.5 MOD
(18) Diametral Pitches from 8 to 56 DP

Cross Slide:
Width: 5-1/2"
Travel: 7-1/2"
Top Slide:
Width: 3-1/4"
Travel: 3-5/8"

Tailstock:
Quill Diameter: 1-21/32"
Tavel: 4-3/8"
Morse Taper: No. 3
Leadscrew: 1-1/8" Diameter x 4 TPI Pitch

Equipped With:
TRAK Digital Read Out
Functional Digital Tachometer for Spindle Speed
8" 6 Jaw Adjust A TRU Buck Chuck
8" 4 Jaw Cushman Chuck
3 Point Bronze Bushing Steady Rest
Inch and Metric Thread Chasing Dials
High Speed Threading Attachment
Taper Attachment
Change Gears
Aloris Quick Change Tool Post with Holders
Chuck Guard
Collet Attachment
Assorted Drill Chucks and Tapers
Machine Manual
High Speed Threading Attachment Manual
Coolant Pan and Pump
3 HP Main Spindle Motor

Wired for 3 Phase, 60 Cycle, 220 Volts



Overall Size: 75" LR x 25" FB x 48" High x 1,400 Lbs.
