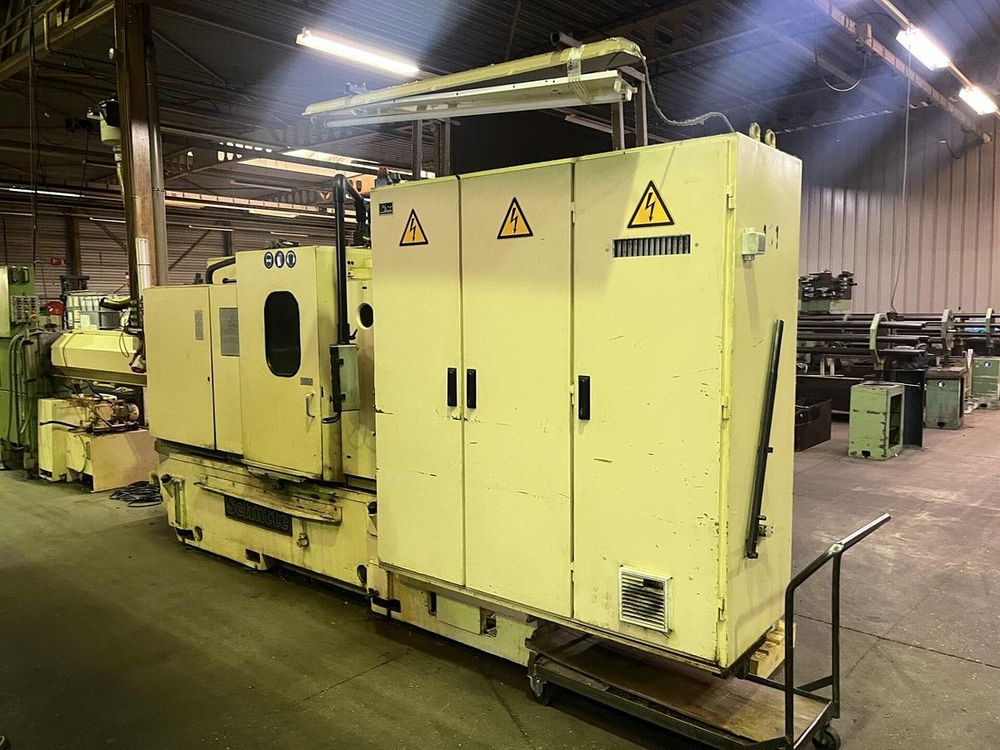

Schutte multi-spindle automatic lathe 3750 rpm SF 26 DNT

Ref : 2741323-3-AW

Condition : Used

Manufacturer : Schutte

Type : multi-spindle automatic lathe

Spindle Speed : 3750 rpm

Model : SF 26 DNT

Year(s) : 1992

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Largest rod diameter round: 26 mm
Largest rod diameter square: 19 mm
Largest rod diameter hexagon: 22 mm
Largest rod diameter octagonal: 24 mm
Spindle diameter: 270 mm
Diameter of the center hole: 70 mm
Longitudinal slide travel normal (total/working): 80 / 63 mm
Longitudinal slide travel special (total/working): 125 / 98 mm
Top slide: 40 / 25 mm
Middle slide: 40 / 25 mm
Bottom slide: 50 / 31 mm
Number of spindle speeds: 49
Range I: 530 – 3750 rpm
Range II: 236 – 1700 rpm
Machine size (L×W×H): 3970 × 1595 mm
Machine weight: 6500 kg
