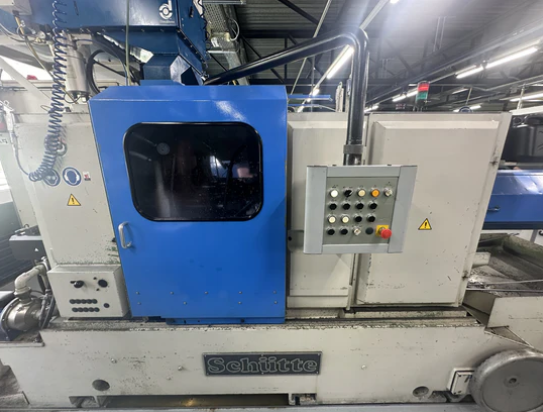

Schutte Multi-Spindle 200 t/min SF 32
Ref :
2762230-3-MT
Condition :
Used
Manufacturer :
Schutte
Type :
Multi-Spindle
Spindle Speed :
200 t/min
Model :
SF 32
Year(s) :
2019
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Number of spindles 6
Capacity round bar 32 mm
Capacity square bar 22 mm
Capacity hexagon bar 27 mm
Max advance of bar 125 mm
Max stroke of long slide 100 mm
Number of possible pieces 35
Cycle time from 1 s
Cycle time up to 125 s
Spindle steps 49
Spindle speed from 200 t/min
Spindle speed up to 3150 t/min
Voltage 50 Hz 3x 380 V
Power 18.5 kW
Machine weight ≈7800 kg
Overall length 3850 mm
Overall width 1510 mm
Overall height 2100 mm
Bar loader
Oil mist extractor
