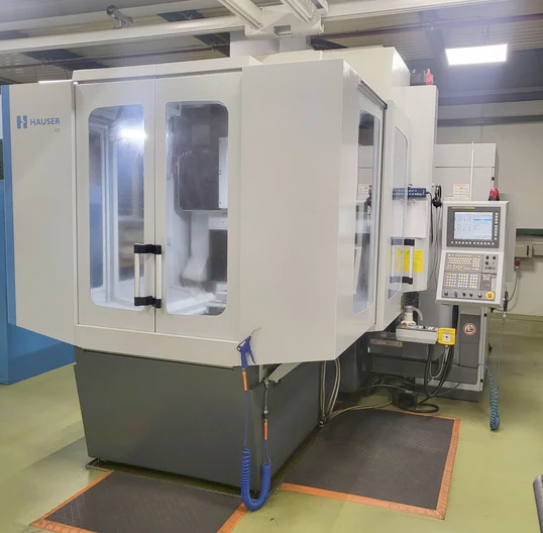

Hauser H55-400

X-axis travel 1300 mm
Y-axis travel 800 mm
W-axis travel 635 mm
Table length 1440 mm
Table width 860 mm
T-slot width 14 mm
Number of T-slots 7
Table load max 800 kg
Spindle–table clearance 0–710 mm
Max grinding diameter 230 mm
Max grinding diameter with plate 360 mm
Column passage 970 mm
Max taper grinding angle 16°
Z-axis stroke length 170 mm
Z-axis stroke speed from 1 mm/min
Z-axis stroke speed up to 14000 mm/min
Z-axis stroke frequency 5 Hz
Radial fine feed U-axis up to 6 mm
C-axis speed from 5 rpm
C-axis speed up to 300 rpm
Grinding spindle speed from 9000 rpm
Grinding spindle speed up to 70000 rpm
Spindle taper HSK 25
X-axis feedrate 0–2 m/min
Y-axis feedrate 0–2 m/min
W-axis feedrate 0–2000 mm/min
Air connection 6–10 bar
Voltage 400 V
Total power required 9 kW
Machine weight about 7000 kg
Machine length 3900 mm
Machine width 2460 mm
Machine height 3000 mm

FEATURES / EQUIPMENT
Control FANUC Series 3Oi-Model B
Coolant system with paper band filter
Programmable coolant nozzle
Redressing device for ceramic cup wheels
Lamp
Renishaw probe
MSS Multi-Sensoric-System
Fire extinguishing system
Oil mist extractor
HI-CUT coolant system
