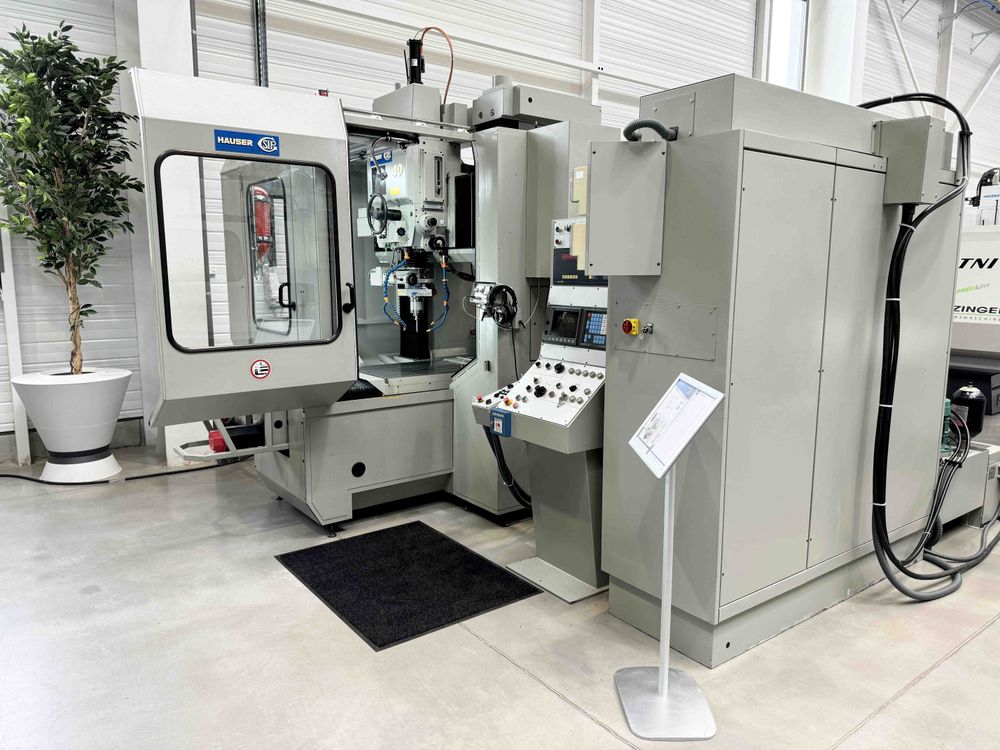

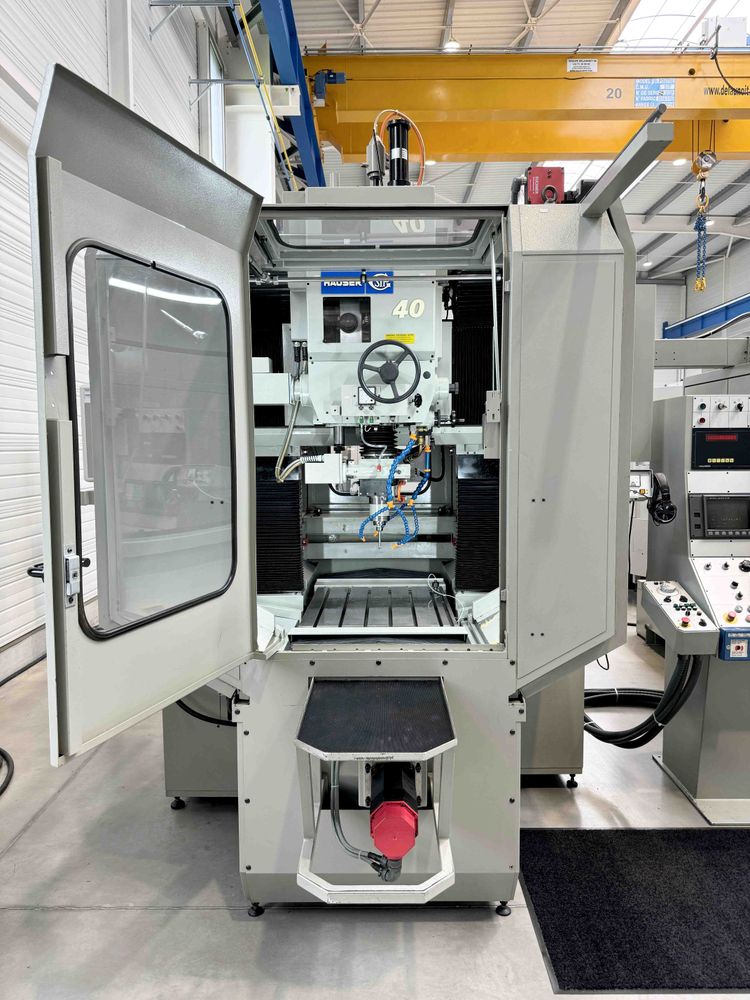

Hauser S40-400

X-Axis Stroke: 650 mm
X-Axis Max Speed: 4000 mm/min
X-Axis Working Feed: 0–1800 mm/min
Y-Axis Stroke: 450 mm
Y-Axis Working Feed: 0–1800 mm/min
Z-Axis Stroke: 130 mm
Z-Axis Min Speed: 0.5 mm/min
Z-Axis Max Speed: 12000 mm/min
Z-Axis Stroke Frequency: max 4 Hz
W-Axis Stroke: 500 mm
C-Axis Speed: 5–250 rpm
W-Axis Max Speed: 800 mm/min
U-Axis Radial Feed: 5.5 mm

Distance Between Columns: 750 mm

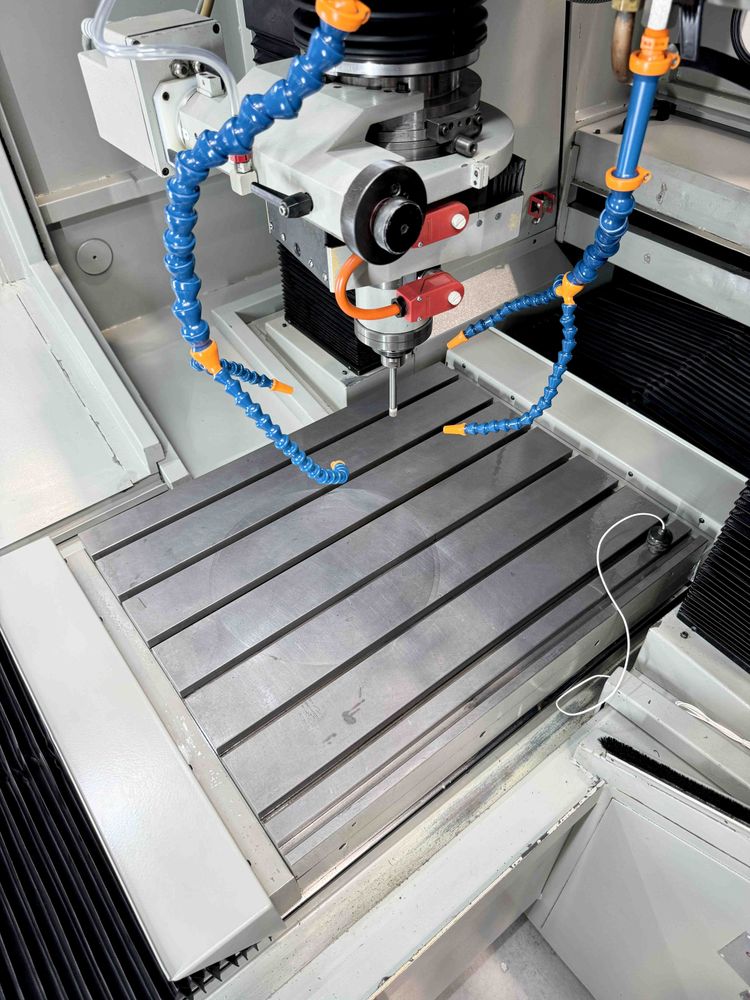

Table Length: 770 mm
Table Width: 630 mm
Max Table Load: 500 kg
Supply Voltage: 400 V
Machine Weight: 4550 kg

Grinding Motor 22 S Speed: 4500–22500 rpm
Grinding Motor 45 S Speed: 9000–4500 rpm
Grinding Motor 80 S Speed: 40000–80000 rpm
Grinding Motor Collet Types: EX23
Grinding Motor Collet Types: EX19
Grinding Motor Collet Types: F6

Slot Grinding Motor Included
Slot Grinding Tools Included

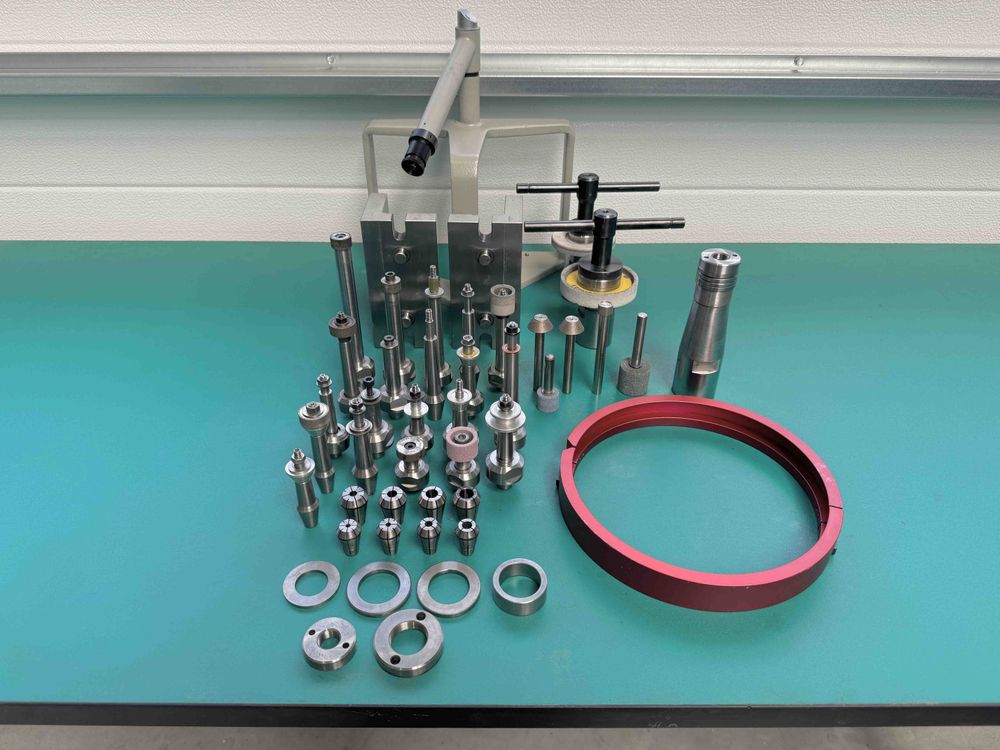

Grinding Wheel Holders: 20 pcs
Centring Microscope Included
Tool Contact Detection Device Included
Angle Brackets 90° Included
Adjustable Cantilever Plate Included
Adjustable Tilting Plate Included

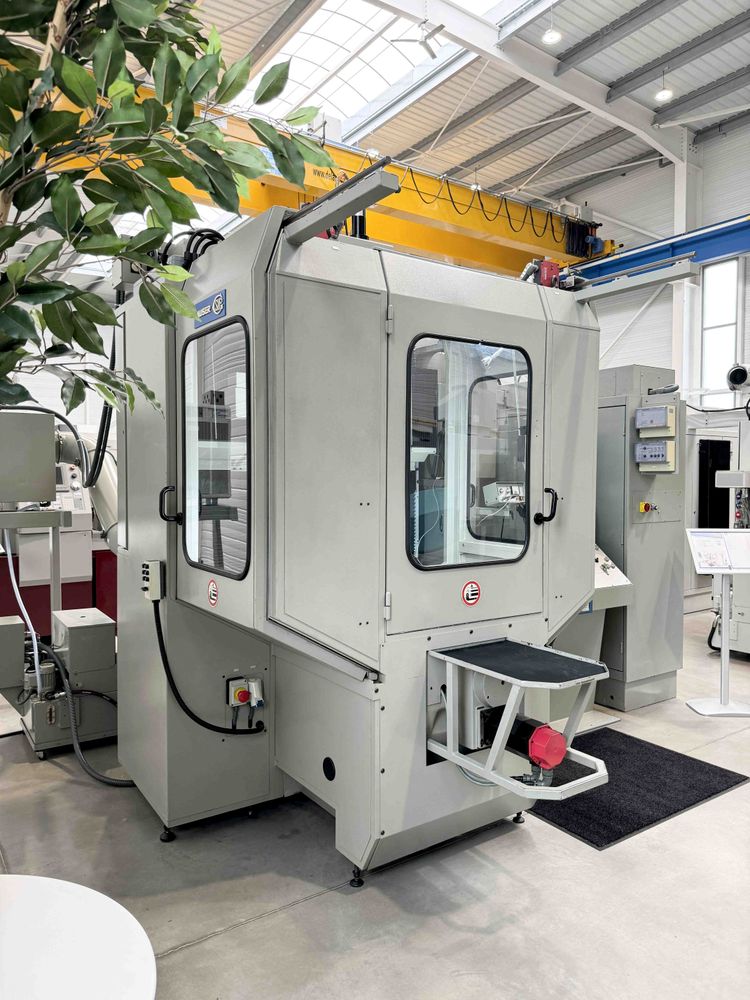

HI-CUT Work Area Protection Included
Exhaust System with Electrostatic Filter Included
Fire Protection System Included
Automatic Paper Tape Filtration Unit Included
Cable for Grinding Motor Included
Documentation Included
