Hauser S40-400

X-Axis Travel: 650 mm
X-Axis Rapid Traverse: 4000 mm/min
X-Axis Working Feedrate: 0 - 1800 mm/min
Y-Axis Travel: 450 mm
Y-Axis Working Feedrate: 0 - 1800 mm/min
Z-Axis Travel: 130 mm
Z-Axis Feedrate: 0.5 - 12000 mm/min
Z-Axis Stroke Frequency: max. 4 Hz
W-Axis Travel: 500 mm
W-Axis Rapid Traverse: 800 mm/min
U-Axis Radial Feed Travel: 5.5 mm
C-Axis Speed: 5 - 250 rpm
MSS Multi-Sensoric System Tool Detection Device
HI-CUT Package
Work Area Protection Enclosure
Electrostatic Air Filtration Extraction System
Fire Protection System
Coolant Unit with Automatic Belt Filter HTG-RWS-60
CBN Dressing Unit with HF Drive
Automatic Dressing for Ceramic Bond and Resin Bond CBN Grinding Wheels
Grinding Turbine T16
Grinding Turbine Speed: 160000 rpm
Turbine Holder with Filter for T10 and T16 Turbines

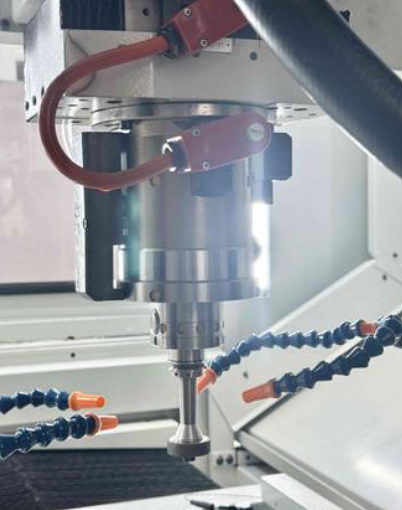

Grinding Spindle 60S-TC
Spindle Speed: 9000 - 60000 rpm
Collet Type: SK20
Intermediate Plate for Alignment of Spindles and Turbines
Dial Indicator Holder for Grinding Spindle Rotor Centering
15 Grinding Wheel Arbors
Grinding Spindle Cable
Miscellaneous Tooling
Complete Documentation
Distance Between Columns: 750 mm
Table Length: 770 mm
Table Width: 630 mm
Maximum Clearance Between Grinding Motor and Table: 585 mm
Maximum Table Load: 500 kg
Power Supply: 400 V
Machine Weight: 4550 kg
