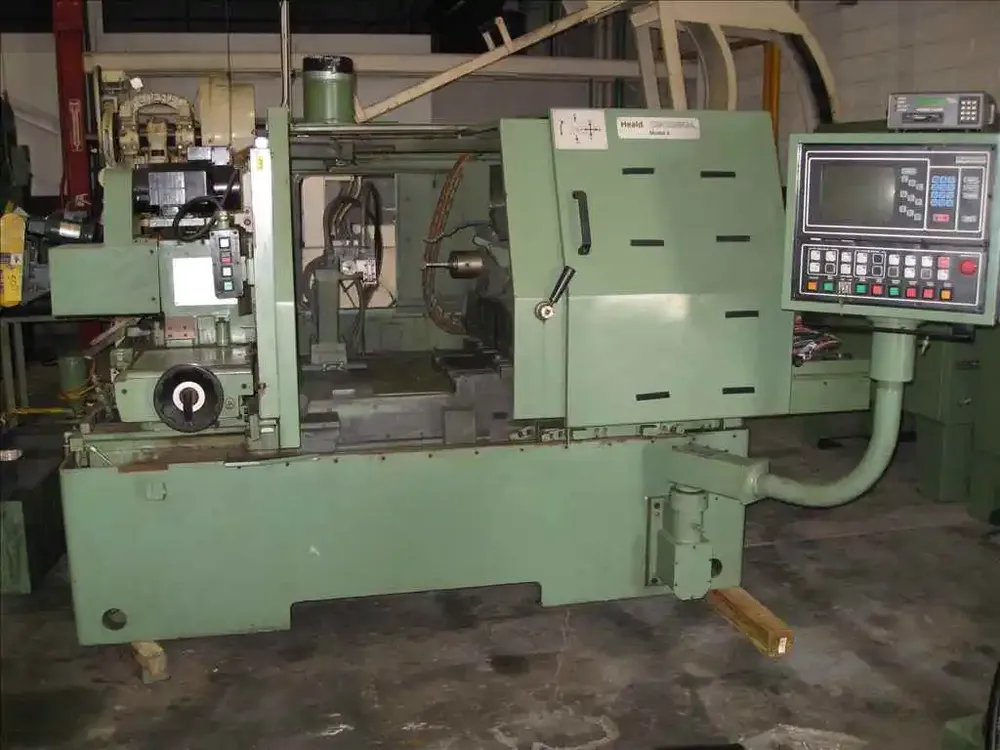

Heald 2EF-750G INTERNAL GRINDER

Swing 28 in
Stroke 17 in
Table travel (long) 20 in
Wheel head cross slide travel 9 in
Work slide travel 16 in

Workhead swivel 0–90°
Workhead power 10 hp
Workhead speed 30–999 rpm (reversible)
Workhead chuck motor 4.5 hp

Wheel head motor power 10 hp
Hydraulic motor 1/3 hp

Feed rate 0.001–999 ipm
Workhead capacity 1000 lbs

Grinding stroke max 17 in
Wheel wear compensation 0–0.004 in

Coolant system included
Hydraulic rotary dresser included
Acramatic 750 GCNC control
Full guarding included
Cross sliding workhead
Flange style workhead
2 in riser on workhead
0–45° sine bar
Standalone electrical panel

Dimensions 65 x 173 x 113 in
Weight 12000 lbs
