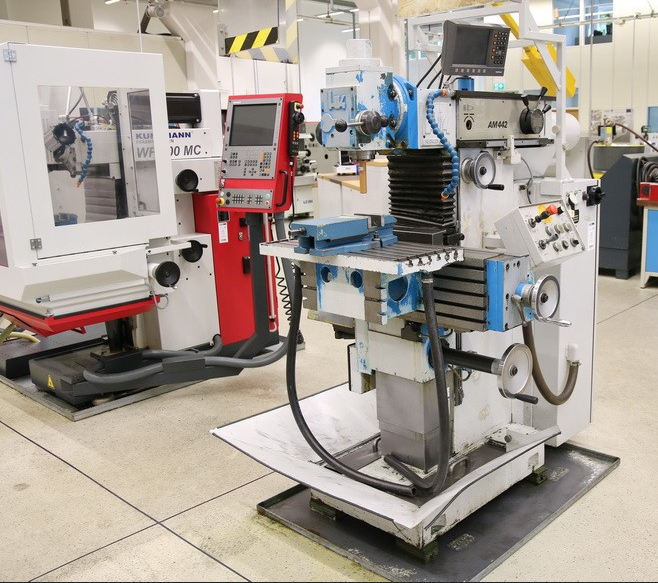

Heckler Et Koch CNC CONTROL 2,800 rpm AM 442 3 Axis
Ref :
2741479-3-GO
Condition :
Used
Manufacturer :
Heckler Et Koch
Controller :
CNC CONTROL
Spindle Speed :
2,800 rpm
Model :
AM 442
Nb Of Axis :
3 Axis
Year(s) :
1982
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel 390 mm
Y-axis travel 330 mm
Z-axis travel 380 mm
Control conventional
Table surface area 850 x 255 mm
Maximum table load 200 kg
T-slot width 12 mm H8
T-slot distance 45 mm
Spindle speed 63 – 2,800 rpm
Transmission ratio 12 positions
Feed 0 – 1,500 mm/min
Tool taper SK 40
Rapid traverse 1,500 mm/min
Machine weight 1,900 kg
Machine dimensions 2,000 x 2,500 x 2,800 mm
