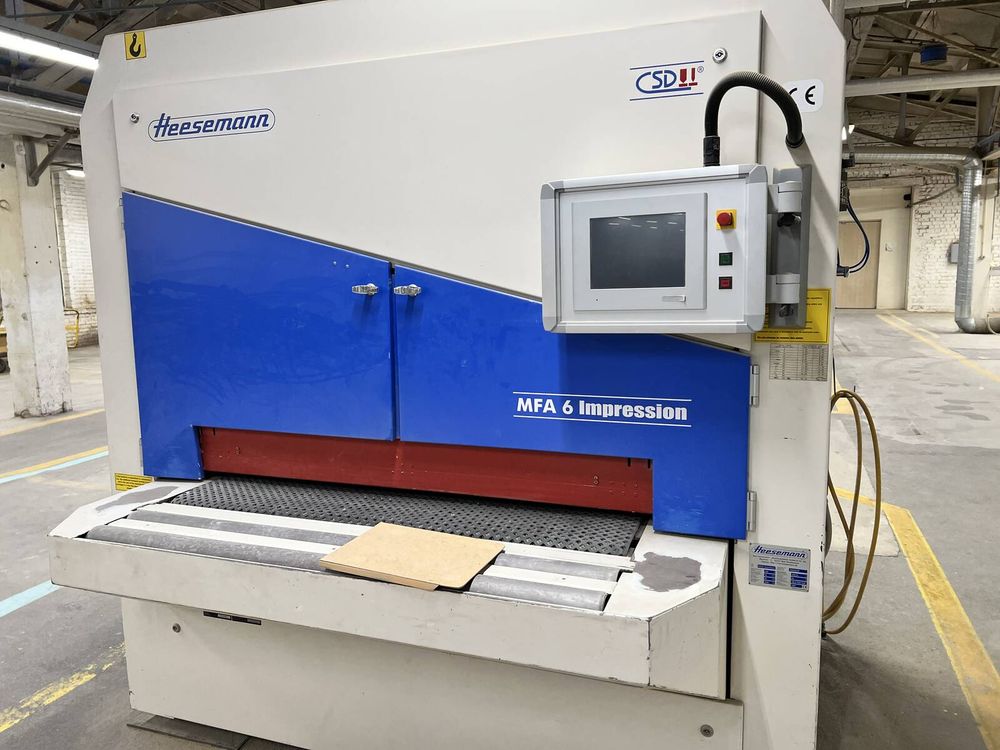

Heesemann MFA6 Impression

Ref : 2499048-15-MT
Condition : Used
Manufacturer : Heesemann
Model : MFA6 Impression
Year(s) : 2005
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Wide belt sanding machine / Automatic surface sanding machine
Allround machine, suitable for veneer sanding as well as lacquer sanding (also high gloss sanding)

working width 1300 mm
workpiece thickness min. approx. 3 mm
passage height max. approx. 150 mm

equipped with 2 sanding units:
1x cross sanding unit
frequency controlled, sanding belt length 4800 x 150 mm, pressure lamella belt dimensions 4350 x 140 mm

1x longitudinal sanding unit
frequency controlled, sanding belt length 2620 x 1400 mm

1x cleaning brush
Segment sanding shoe electronic
segment width 32 mm
Sanding belt blow-off device

belt speed max. 20 m/s
Sanding belt speed adjustable infinitely variable

with CSD pressure beam

Vacuum table , feed infinitely variable, max. approx. 15 m/min.
table height constant
operating voltage 400 V
control voltage 230 / 24 V
nominal current 93 A
total connected load 40 kW
Weight 3000 kg
