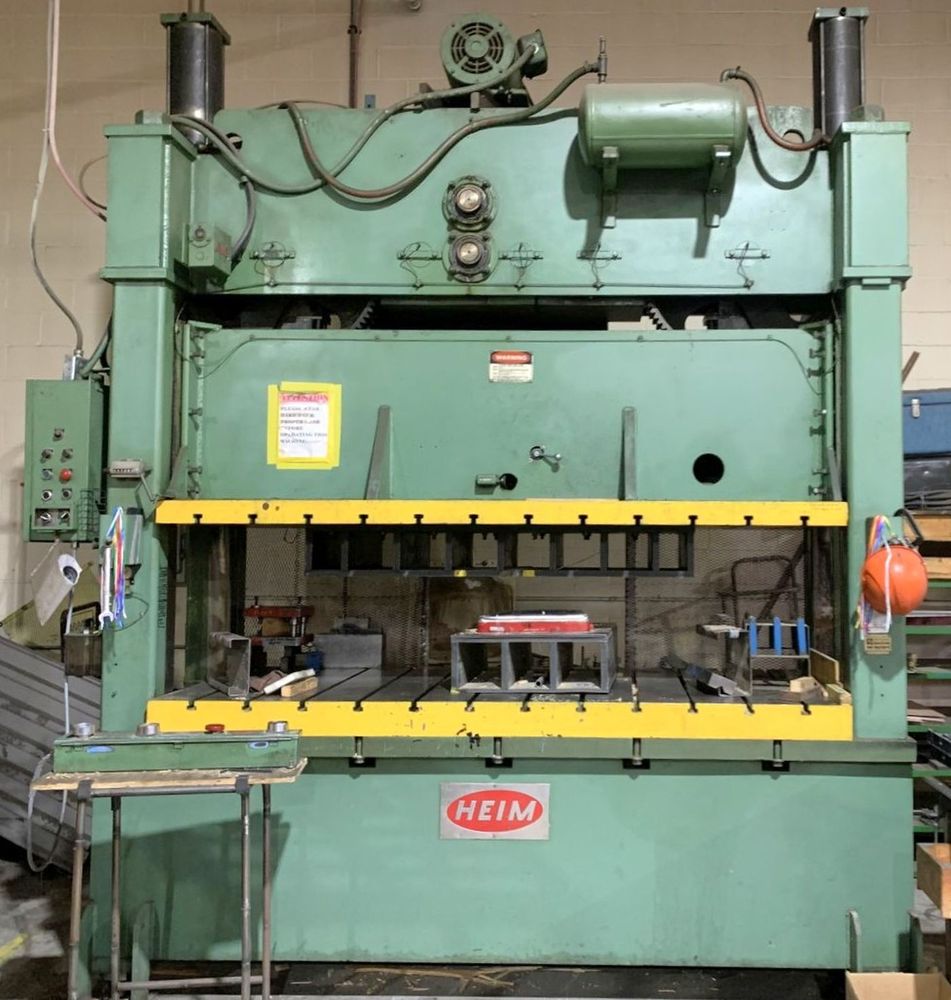

Heim 200-42-102 Press 200 TONS

Heim 200-42-102 Press

CAPACITY 200 TONS
STROKE 8″
MAX. SHUT HEIGHT TO BED 12″
BED AREA 102″ X 42″ (RL X FB)
BOLSTER PLATE 102″ X 42″ (RL X FB) X 5.5″ THICK T-SLOTTED BOLSTER PLATE
RAM / SLIDE AREA 101″ X 42″ (RL X FB)
RAM / SLIDE ADJUSTMENT 6.125″

SPEED 22 SPM
DISTANCE BETWEEN UPRIGHTS 102″
WINDOW SIZE 22″ WIDE X 25.5″ HIGH
FLOOR TO BED HEIGHT 39″

PRESS CONTROLS RELAY LOGIC CONTROLLER
CLUTCH HEIM AIR CLUTCH AND BRAKE ASSEMBLY
ELECTRIC MOTOR 575V
APPROX. DIMENSIONS 132″ X 84″ (RL X FB) X 144″ HIGH
APPROX. WEIGHT 25,000 LBS.

Equipped With
DUAL COUNTER BALANCE, DUAL PALM BUTTONS
