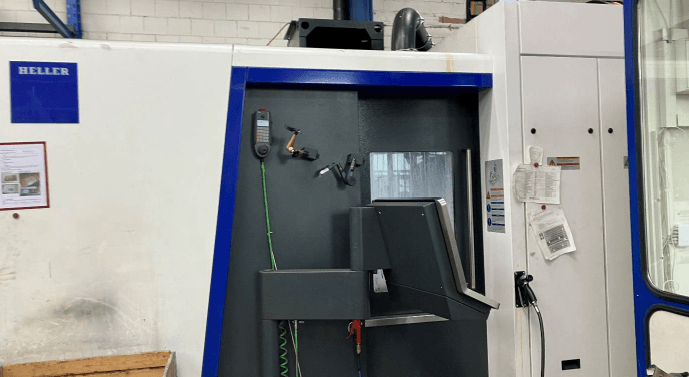

Heller HF3500 5 Axis

X-axis travel 710 mm
Y-axis travel 750 mm
Z-axis travel 710 mm
Rotary axes A/B for 5-axis machining
NC rotary table with tilted rotary axes
Siemens SINUMERIK ONE control
Ebenentransformation (CYCLE800)
Tool-Extraction system
HSK-A 63 tool holder DIN 69893
PC 63 i Power Cutting unit 12,000 rpm, 45 kW, 228 Nm
Tool magazine 80 positions, chain type
Rapid feed X-Y-Z 100 m/min
Mechanical workpiece clamping
Two pallets with zero-point clamping system, DIN hole pattern
Scraper belt chip conveyor
Coolant cleaning system, paper band filter TMF600, 70 bar, high-pressure pump
Coolant cooler, water-air, compressor type
Emulsion extraction system
LED status light red-yellow-green
Technology package milling ONE Dynamics 5-axis
AutoCal automatic calibration
Touch terminal SINUMERIK HT 2
Infrared measuring probe TS 640
Touch probe for tool measurement TT140
Enforced-Drive in A, reinforced torque drive for simultaneous 5-axis machining
Comfort operating terminal at tool setup station
Fast drill breakage monitoring
Disc blow-off device for working area door
