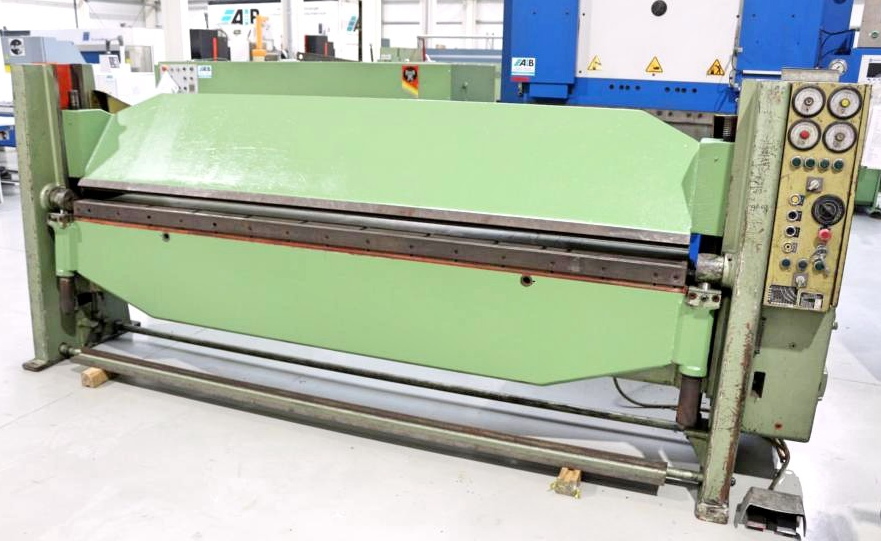

Hera UM III / 3020 x 3.0
Ref :
2763472-3-AW
Condition :
Used
Manufacturer :
Hera
Model :
UM III / 3020 x 3.0
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Sheet width: 3020 mm
Plate thickness: 3.0 mm
Upper clamping bar adjustment: 150 mm
Lower beam adjustment: 125 mm
Bending speed: 6.0 sec / stroke
Bending angle max.: 0–180°
Control: conventional
Work height max.: 930 mm
Engine output: 2.6 kW
Weight: 3500 kg
Range L-W-H: 3400 x 1200 x 1650 mm
EQUIPMENT / FEATURES
Electric motor-driven bending machine
Control panel front right
Control cabinet
Bending angle adjustment via electric potentiometer
Manual lower beam adjustment
Replacement bending rail
Freely movable double foot switch
Emergency stop button front
Operating instructions PDF
