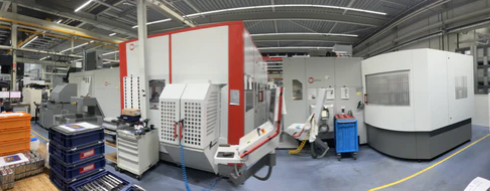

Hermle C 42 U 5 Axis

X axis travel 800 mm
Y axis travel 800 mm
Z axis travel 550 mm
Rapid traverse X 45 m/min
Rapid traverse Y 45 m/min
Rapid traverse Z 40 m/min

A axis swivel angle ±130°
NC rotary and swiveling table

Control HEIDENHAIN TNC 530
Add-on tool-holder magazine 160 places
Pallet station 54 spaces
Loading robot KUKA
Coolant through spindle 80 bar
Air blast through milling spindle
Paper filtration system
Measuring feeler gauge Renishaw
Workpiece measurement BLUM
Tool break control BLUM
Chip conveyor
Oil mist extractor
Rotating viewing window
Automatic sliding door
Interface serial RS232
Interface Ethernet
Interface USB
Switch cabinet air conditioner

Table length 400 mm
Table width 400 mm
Number of T-channels 5
T-channel width 14H7 mm
Table load max 450 kg
Maximum swing circle 990 mm

Pallet changer quantity 30
Pallet length 400 mm
Pallet width 400 mm

Tool magazine 42 places
Additional tool-holder magazine 160 places

Spindle nose HSK-A63
Spindle speed from 0 rpm
Spindle speed up to 18000 rpm
Spindle power 42 kW
Torque max 148 Nm

Air connection 6 bar
Voltage 3×400 V
Total power required 37 kVA

Machine weight approx 12500 kg
Machine length 16000 mm
Machine width 7000 mm
Machine height 3500 mm
