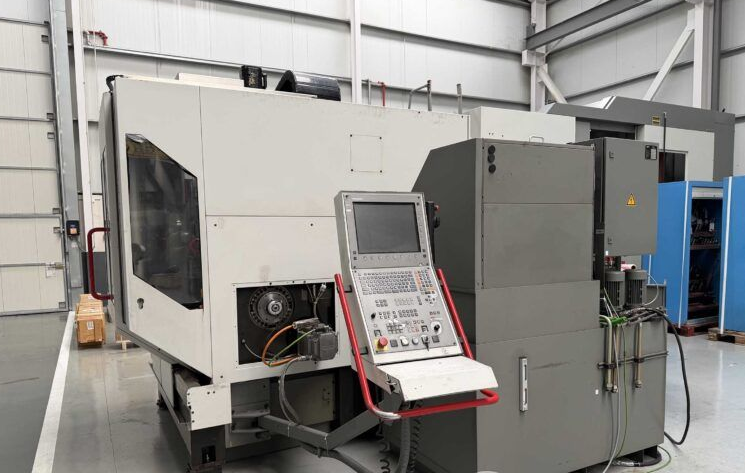

Hermle C40-U Dynamic 5 Axis

X Axis Travel: 850 mm
Y Axis Travel: 700 mm
Z Axis Travel: 500 mm
Rapid Feed X,Y,Z: 60,000 mm/min
C Axis Turning Table Range: 0.001° (±360°)
B Axis Tilting Range: +25 / -110°
Table Surface Diameter: 800 mm
Max Weight Allowed on Table: 1,400 kg
Max Part Diameter: 840 mm
Spindle Taper: SK 40 DIN 69871
Max Spindle Speed: 18,000 RPM
Main Spindle Power: 15 kW
Main Spindle Torque: 130 Nm
CNC Control: Heidenhain iTNC 530
ATC Included
Positions in Magazine: 38
Internal Coolant 80 Bar Included
Deposit with Filter Paper 200 L Included
Active Control Cabinet Cooling Included
Infrared Part Touch Probe Heidenhain Included
Tool Measuring Blum Laser Included
Chip Conveyor Included
Spray Pistol with Pump 2 Bar 40 L/min Included
3D Quick Set Included
Portable Handwheel Heidenhain HR-410
Total Power: 41 kVA
Machine Weight: 10,500 kg
