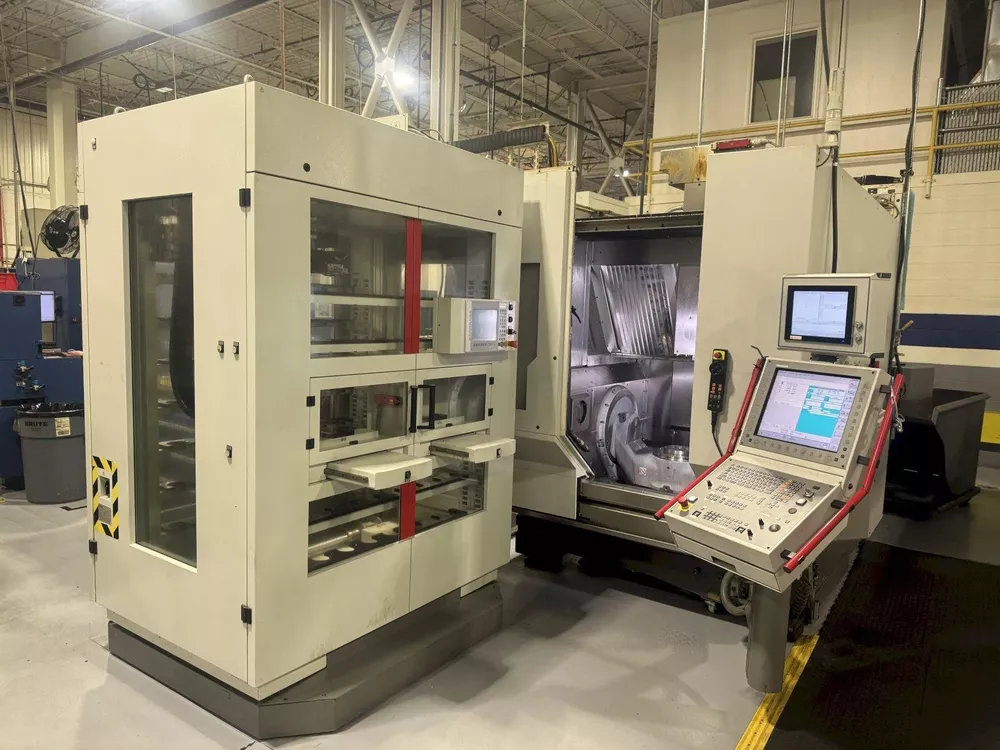

Hermle MACHINES C22U 5 Axis

X-Axis Travel 17.7"
Y-Axis Travel 23.6"
Z-Axis Travel 12.99"
B Axis Rotary +/- 135°
A Axis Rotation 0.001°
5 Axis
Heidenhain iTNC 530 CNC Control
Electr. iTNC manual control module
96 Station HSK 100 Receiver Pallet Pool
(2) Loading/Unloading Stations
Table Receiver is HSK 100
Glass Scales on X/Y/Z Axes
Hi-Pressure Coolant Thru Spindle
Internal coolant supply 80 bar
Blum Laser
Tool Break Off Detection
Kinematic Opt - Hardware
Linear Axis Dynamic Version
NC swivel rotary table Ø 320
Torque drive
A-axis dynamics package
Blowing air through the center of the spindle
Swarf Spray Gun
Bed Wash
Oil mist extraction
Automatic Cabin Door
Electr. iTNC Heat Compensation
Chip Conveyor
Coolant Tank & Pump
18,000 rpm Spindle Speed
REBUILT SPINDLE IN 3/2025
35 hp Main Motor
HSK 63 Spindle Taper
55 ATC Capacity
12.6" Diameter Table Size
330 pounds Max Table Load
Machine Dimensions 185" x 93" x 125"
Machine Weight 20,000 pounds
