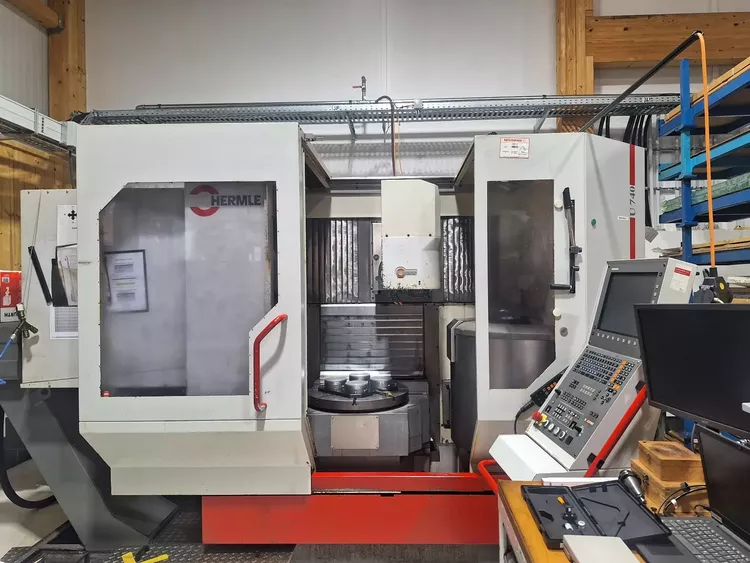

Hermle U 740 5 Axis

Axis travel X: 915 mm
Axis travel Y: 500 mm
Axis travel Z: 500 mm
B axis: -5° / +95°
C axis: 360°
Rapid travel X: 30 m/min
Rapid travel Y: 30 m/min
Rapid travel Z: 20 m/min
Number of controlled axes: 5
Control: Heidenhain iTNC 530
Spindle speed: 12,000 rpm
Spindle motor power: 17.5 / 32 kW
Spindle torque: 108 Nm
Spindle taper: SK 40
Tool changer capacity: 28
NC rotary table diameter: 630 mm
Coolant through spindle: 60 bar
Coolant tank capacity: 640 l
Chip conveyor
3D probe Renishaw
Air through spindle center
