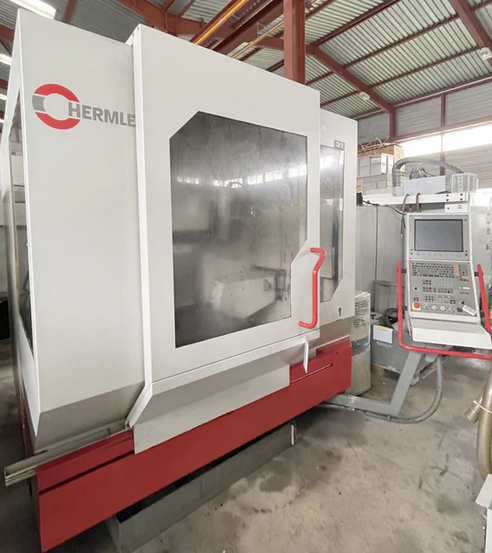

Hermle U 740 5 Axis

X-axis travel: 915 mm
Y-axis travel: 500 mm
Z-axis travel: 500 mm
Rapid traverse X-axis: 30 m/min
Rapid traverse Y-axis: 30 m/min
Rapid traverse Z-axis: 20 m/min
Swiveling range milling head: -5° to +95°
Number of axes: 5
Control: HEIDENHAIN iTNC 530
Spindle taper: SK40
Spindle speed range: 20–12,000 rpm
Spindle power: 32 kW
Tool changer capacity: 16 stations
Maximum tool diameter: 125 mm
Maximum tool diameter with free adjacent pockets: 180 mm
Maximum tool length: 300 mm
Maximum tool weight: 6 kg
Table length: 900 mm
Table width: 500 mm
Table load max.: 700 kg
Number of T-slots: 8
T-slot spacing: 65 mm
T-slot width: 14 mm
Workpiece length max.: 900 mm
Workpiece width max.: 500 mm
Workpiece height max.: 500 mm
Total power required: 26 kVA
Air supply: 6 bar
Machine weight: approx. 7,300 kg
Overall length: 2,760 mm
Overall width: 2,390 mm
Overall height: 2,370 mm
Noise level: 78 dB(A)

Features / options / equipment
Automatic tool changer
3-jaw chuck Ø200 mm
Touch probe HEIDENHAIN TS 640
4th axis dividing attachment HOFMANN RW/NC-160
RS232 interface
Ethernet interface
Switch cabinet air conditioner
Rinsing gun
