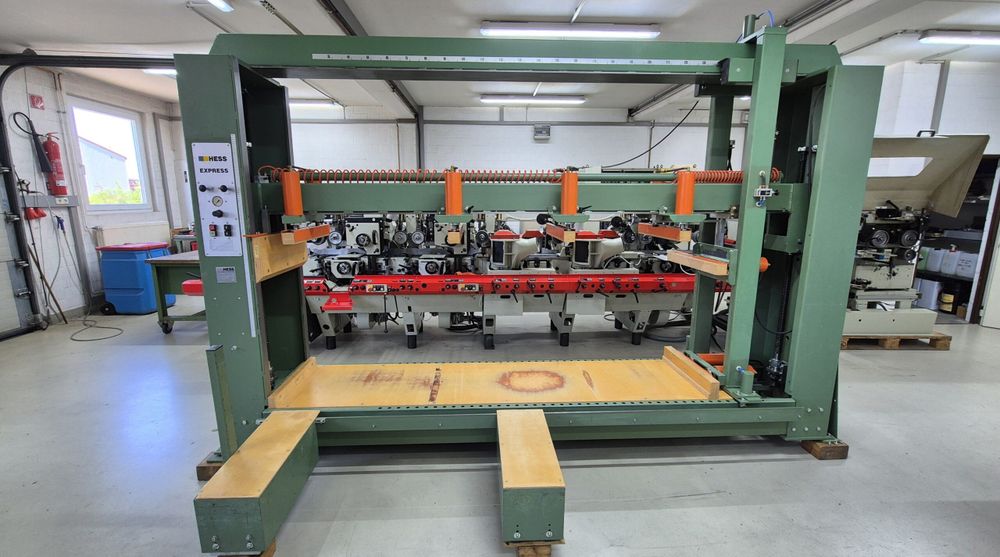

Hess EXPRESS
EUROPE (Western and Northern)
Body press
Working area:
Width min. 250 – max. 2,500 mm
Height min. 250 – max. 1,350 mm
Depth max. 600 mm
Installation dimensions:
Width 3,580 mm x Height 2,375 mm x Depth 790 mm
Technical specifications:
Central electromotive height adjustment via touch switch
Automatic locking via trapezoidal thread spindle
Manual width adjustment via ball-bearing sliding carriage
Sliding carriage with pneumatic central locking (3-point locking)
HESS hole pattern system with 50 mm pitch
Continuous support base as complete support
All printing units with 2 printing cylinders each
Central height adjustment of all vertical printing units via pressure beams
Separate control of the vertical and horizontal printing units via 1 manual control valve each
Pressure force regulation from 4-10 bar according to the diagram
Height adjustment according to mm scale
Width adjustment on a 50 mm scale
4 vertical and 2 horizontal pressure units each, each with 2 pressure cylinders, 1000 kp (approx. 10,000 N) pressure force per unit at 10 bar, 110 mm cylinder stroke
Horizontal pressure units with quick-release couplings
Electrical connection: 0.55 kW, 380 volts, 3/N, 50 Hz.
Pneumatic connection: R 3/8″, max. 10 bar
