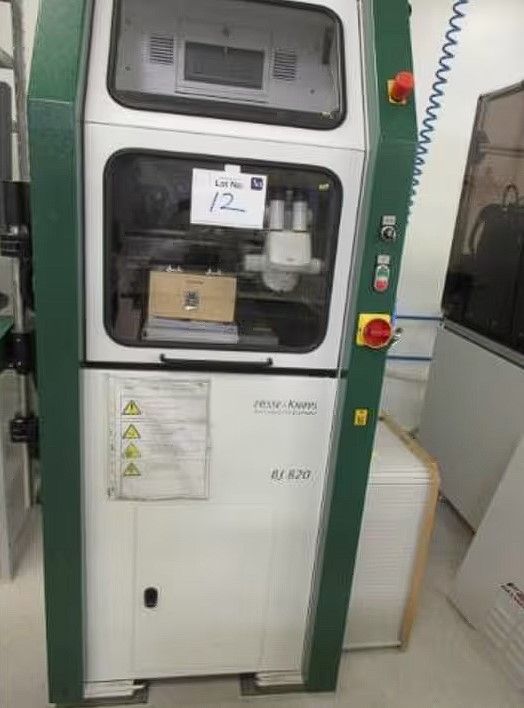

Hesse & Knipps Bondjet BJ820 Wedge Bonder

Includes Hesse DA 04 051 Deep Access Bondhead & Light Tower;
Number of Bonds Approx 37,054,610;
Dimensions of Machine Approx 720mm x 1300mm x 1800mm High;

Specs:
Fully Operational 4 Axis Rotary Bondhead Wedge-Wedge Bonder
with Standard X & Y axis Table,
Working Area 305mm x 410mm;
Bonding is possible inside the following working area: X Axis:305mm,
Y Axis: 410mm, Z Axis: 30mm, P Axis (rotational axis): 420 Degrees;
Axis Repeatability 1 Micorn @ 3 Sigma;
2" Wire Spool Motorized Wire Feeder;
Wire Dia Range 17.5 Micron - 60 Micron;
Lost Wire & Wire Consumption Detection System;
(4) Linear Motors & (1) Rotational Synchron-Servo Motor;
Mini CCD Camera;
Bondjet Pattern Recognition System;
Leica MS5 Microscope;
Keyboard & Trackball;
Trivac D8B Pump & Motor;
