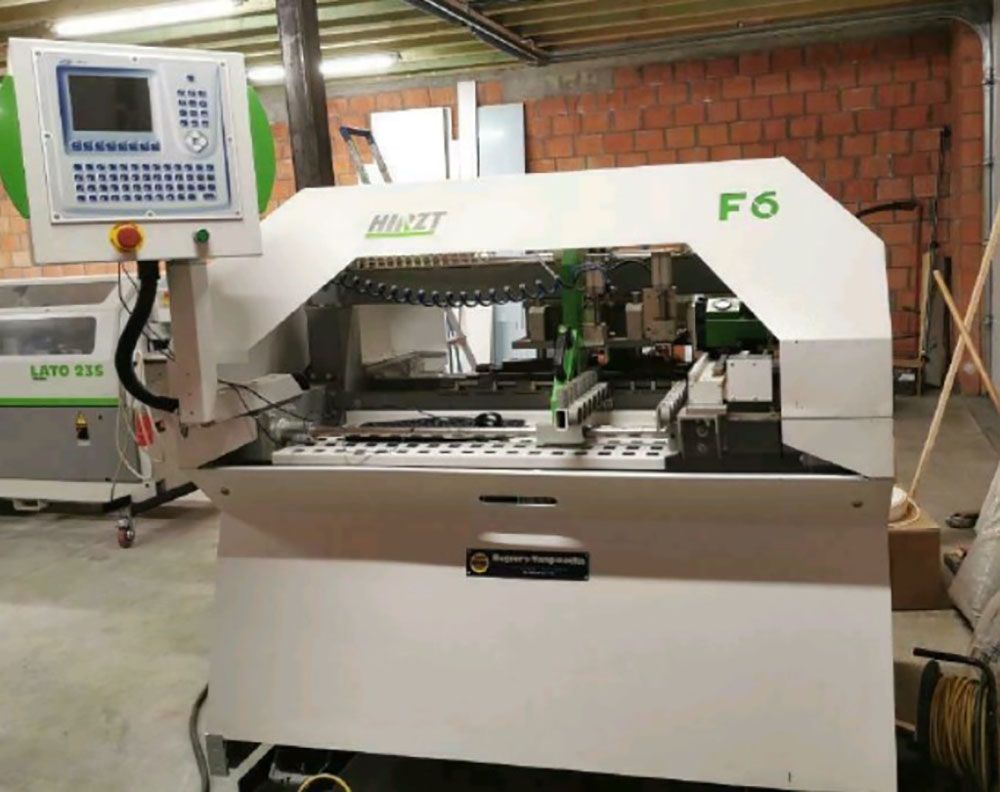

Hirzt F6

Used CNC drilling and insertion machine for flexible manufacturing.
- 7 vertical spindles
- 1+1 horizontal spindles at the front and rear ends of the panel

Technical specifications:
• Windows CE control
• Number of controlled axes 3 (X, Y, Z)
• Work table height 900 mm
• Max. panel width 800 mm
• Max. drilling area 600 mm
• Max. panel feed speed 30 m/min
• Spindle speed 3400 rpm
• Total power 2.5 kW
• Exhaust outlet diameter 100 mm
• Connected compressed air 6 bar

Machine dimensions:
Length 1650 mm
Width 1630 mm
Height 1640 mm
Weight 920 kg
