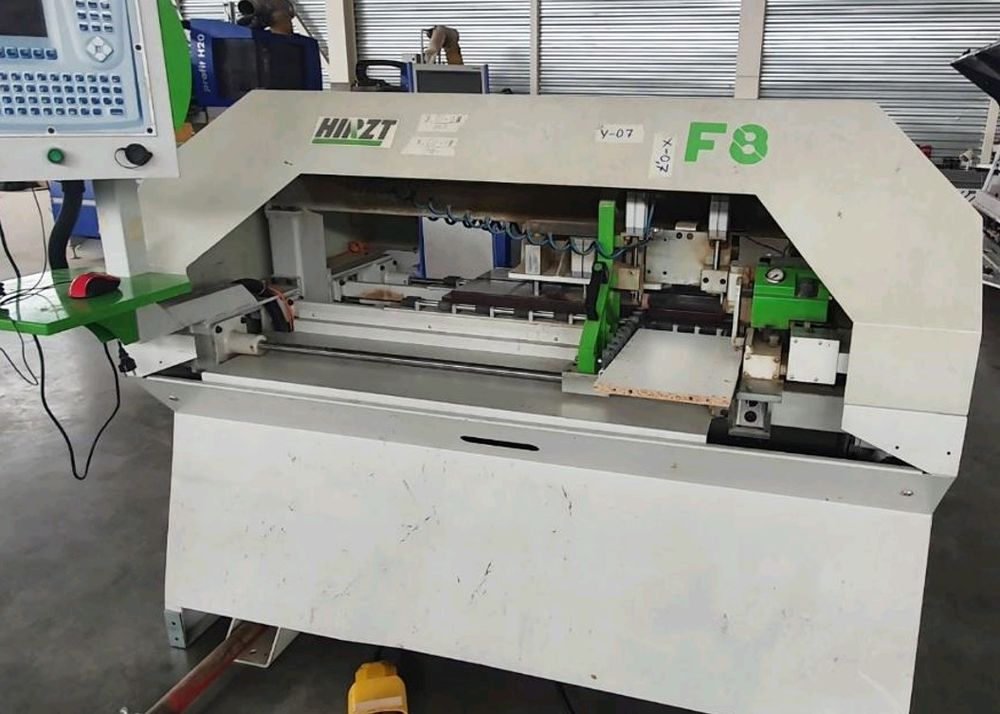

Hirzt F8
Ref :
2757242-15-MT
Condition :
Used
Manufacturer :
Hirzt
Model :
F8
Year(s) :
2010
Quantity :
1
Location :
Seller or machines location:
RUSSIA and Central Asia
RUSSIA and Central Asia
Drill head configuration:
7 vertical spindles
2+2 horizontal spindles for face drilling at front and rear
Technical specifications of the Hirzt F8:
Number of spindles 11 pcs.
Part feed rate up to 30 m\min.
Total power 3.5 kW
Spindle speed 3400 rpm
Drilling diameter up to 35 mm
Diameter of the aspiration system 100 mm
Pressure 6 atm.
Control Parametric CN
Display 15" Touch Screen Monitor
Input devices Keyboard, mouse 1 pc.
USB port 1 pc.
Dimensions 1200x1633x1682 mm
Weight 950 kg
