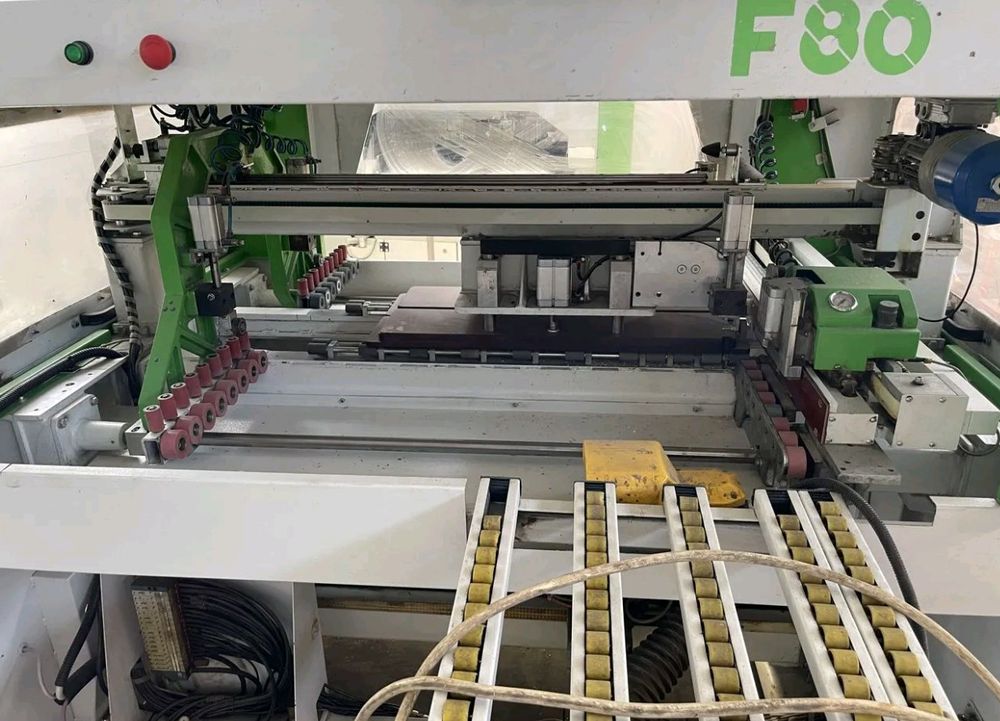

Hirzt F80

CNC drilling and insertion machine
Equipment:
• Automatic adjustment of the basing ruler (left).
• Automatic reading of the beginning and end of the workpiece.
• Front roller table.

Configuration of the drilling head:
7 vertical spindles
2 + 2 horizontal spindles for face drilling front / back
1 + 1 horizontal spindle for face drilling right / left

Dimensions of workpieces:
Length: min. 240 ... max. unlimited
Width: min. 100 ... max. 1000 mm (workpiece - 800 mm)
Thickness: min. 10 ... max. 50 mm

Technical data :
• Number of spindles 13 pcs.
• Workpiece feed speed up to 30 m \ min.
• Total power 3.5 kW
• Spindle speed 3400 rpm
• Drilling diameter up to 35 mm
• Aspiration system diameter 100 mm
• Aspiration speed 30 m/sec
• Pressure 6 atm.
• Parametric CN control
• Dimensions 1300x1633x1682 mm
• Weight 1150 kg
