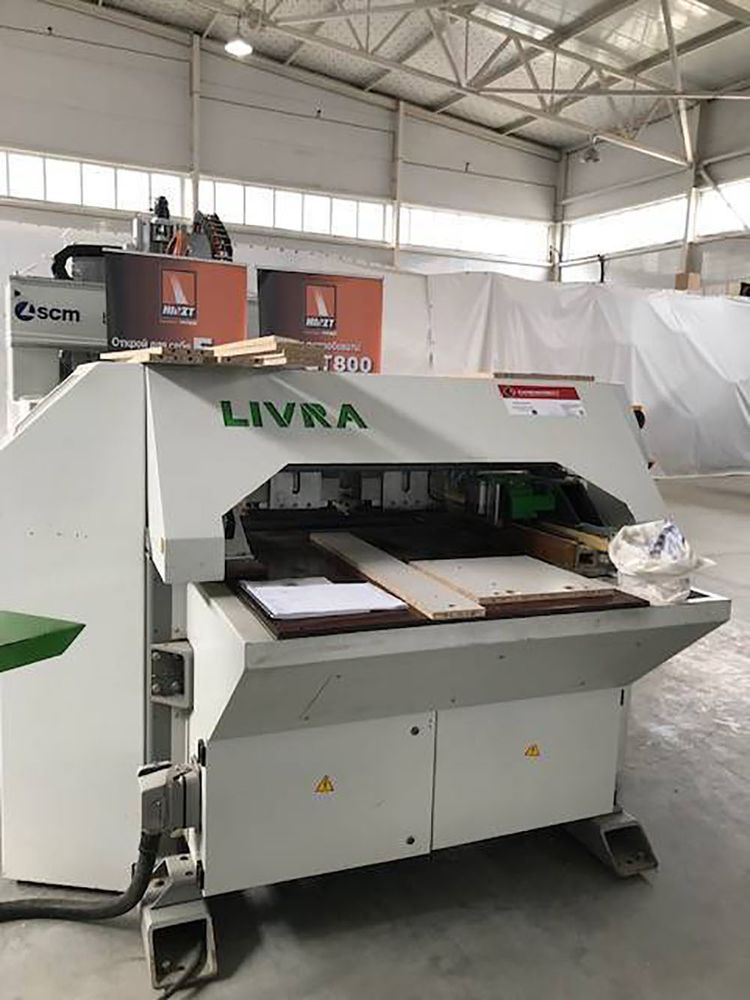

Hirzt LIVRA 5

Dimensions of workpieces:
Length – min. 250 … max. unlimited
Width – min. 100 … max. 800 mm.
Thickness – min. 10 … max. 40 mm.

Drill head configuration :
- 12 vertical spindles
- 1 horizontal spindle for face drilling at the front
- 1 horizontal spindle for face drilling at the rear
- 1 horizontal spindle for side drilling on the left
- 1 horizontal spindle for side drilling on the right

Feed rate of up to 60 meters per minute.
Total power 3.5 kW.
Spindle speed 3400 rpm.
Drill shank diameter 10 mm.
Drilling diameter up to 35 mm.
Aspiration system diameter 100 mm
. Aspiration speed 30 meters per second
. Pneumatic system pressure 6 atm.
Start and end control included.
Table with rubberized rollers included .
PNEUMAX pneumatics included.
Control: separate stand with monitor.
Number of controlled axes 4.
