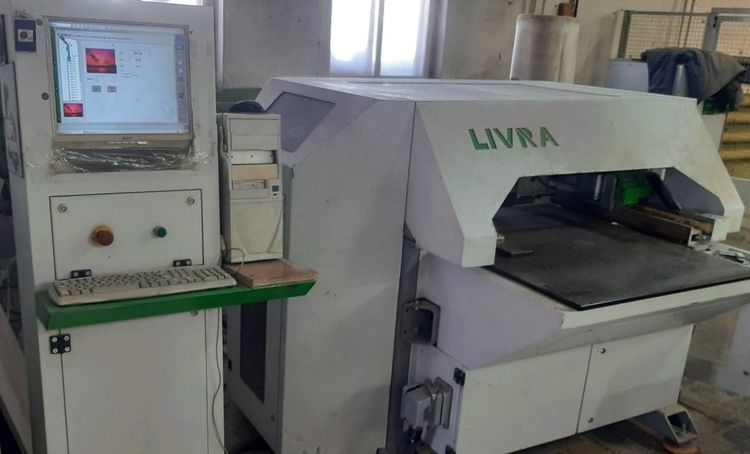

Hirzt LIVRA 5

Specifications:
• Number of spindles 26 pcs.
• Feed speed of the part 30 m/min.
• Motor power 3.5 kW IP55 design
• Rotation speed 3400 rpm
• Shank diameter up to 16 mm
• Drilling depth up to 70 mm
• Drilling diameter up to 35 mm
• Aspiration pipe diameter Ø120 mm
• Air flow speed 30 m/sec
• Compressed air pressure 6 atm.
• PNEUMAX pneumatics
• INA bearings.

Drill head configuration:
1) 16 vertical spindles
2) 3 horizontal spindles for front face drilling
3) 3 horizontal spindles for rear face drilling
4) 2 horizontal spindles for left side drilling
5) 2 horizontal spindles for right side drilling

Dimensions of workpieces:
Length: min. 240 … max. unlimited
Width: min. 50 … max. 800 mm.
Thickness: min. 10 … max. 50 mm.
