Hitachi ES-107LHS Heat Shock Tester

Power Supply: AC200V 3-phase 60Hz, Max 78A
Condensation Method: Water-cooled
Operating Time: Approximately 33,400 hours
Method: Zone Switching by Damper Opening and Closing
(Sample Static/Hot/Cold Air Switching)
Shelves (Specimen Baskets): 2
High-Temperature Exposure Range: 60°C to 200°C*1
Cable Port: 50mm Diameter, 1 Location (Left Side)
Low-Temperature Exposure Range: -70°C to 0°C
Casters: Yes
Test Area: W470 x H460 x D485mm
Other No built-in compressor
Emergency stop button
Cycle counter (1 with reset, 1 without reset)
1 USB port (Type A) (right side)
External dimensions: W1410 x H1983 x D1470 mm
Required equipment: Dry air: 0.4-0.7 MPa
Cooling water: 2750 L/h
(at inlet cooling water temperature of 32°C)
Water pressure: 0.1-0.5 MPa
Weight: Approximately 950 kg

[Product Description]

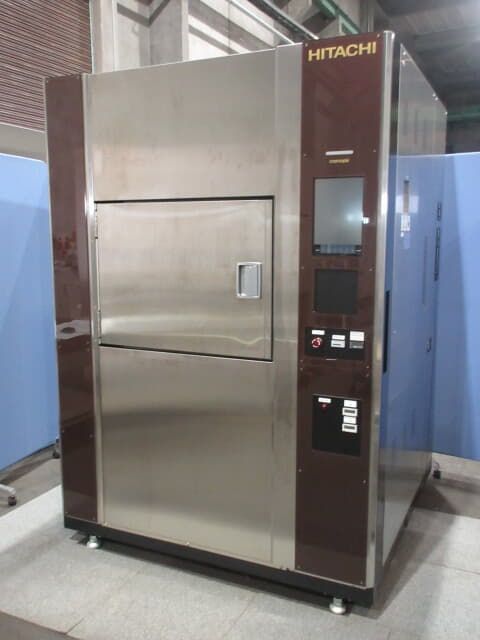

This ES-107LHS is a Hitachi Thermal Shock Chamber.

[Equipment Status]
No instruction manual
No power cable
This is a 60Hz model only.
Compressor not included.
[1] High-temperature testing at temperatures below 80°C is
only possible when the ambient temperature is below 20°C.
