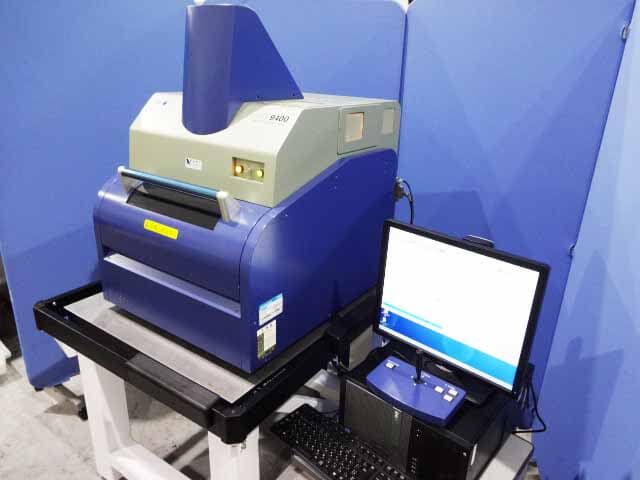

Hitachi SFT9400

• Device Feature: microscopic area compatible, high performance type
• Measurement Target Elements: atomic numbers 22 (Ti) to 83 (Bi)
• X-ray Source Target: W
• Tube Voltage: 50 kV
• Tube Current: 1.5 mA
• Window Material: Be
• Detector Type: proportional counter
• Detector Type: semiconductor detector (liquid-nitrogen-free)
• Device Calibration: automatic calibration
• Device Calibration: manual calibration
• Collimator Size: 0.05 × 0.05 mm
• Collimator Size: 0.015 mm φ
• Collimator Size: 0.1 mm φ
• Collimator Size: 0.025 × 0.4 mm
• Safety Feature: sample door interlock
• Safety Feature: sample collision prevention
• Sample Observation: CCD camera
• Optical System: zoom optics
• Lighting: halogen
• Focus Switching Function: 3-stage switching
• Focus Distance: 10 mm
• Focus Distance: 40 mm
• Focus Distance: 70 mm
• Compatible Application: single-layer thin film
• Compatible Application: two-layer thin film
• Compatible Application: two-component alloy thin film
• Measurement Capability: simultaneous component ratio measurement
• Software Method: bulk FP method
• Software Method: bulk calibration curve
• Software Method: thin film FP method
• Software Method: thin film calibration curve
• Software Function: qualitative report
• Software Function: spectrum matching
• Measurement Function: automatic measurement
• Measurement Function: center search
• Measurement Function: image-processing positioning
• Table Dimensions: W 240 × D 170 mm
• Travel Amount X Axis: 220 mm
• Travel Amount Y Axis: 150 mm
• Travel Amount Z Axis: 150 mm
• Device Control Software: X-ray Station
• Control Platform: PC (Windows 7)
• Measuring Head Dimensions: W 640 × D 810 × H 900 mm
• Weight: 124 kg
