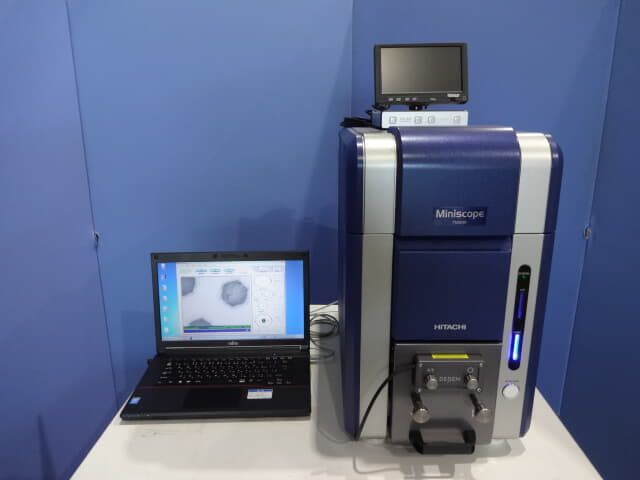

Hitachi TM3030

Hitachi TM3030, Management Number 13448

Specifications
* Magnification: ×15 to ×30,000 (Digital Zoom: ×2, ×4)
* Acceleration Voltage: 5kV/15kV
* Observation Condition Settings: Surface/Normal/High Brightness
* Observation Mode: Standard Mode, Charge Reduction Mode
* Image Mode: Standard, Shadowed 1, Shadowed 2, Surface Texture
* Sample Movable Range: X: ±17.5mm Y: ±17.5mm
* Electron Gun: Pre-centered cartridge filament
* Detection System: High-sensitivity 4-segment semiconductor backscattered electron detector
* Automatic Image Adjustment Function: Auto start, auto focus, auto brightness
* Image Format: BMP, TIFF, JPEG
* Protection Function: Overcurrent protection function, built-in leakage circuit breaker
* Room Temperature: 15-30°C (△t = ±2.5°C/h or less)
* Humidity: 45%-70%RH (non-condensing)
* Main Unit Power Supply: Single-phase AC 100-240V 50/60Hz 500VA
* PC Power Supply: Single-phase AC 100V 50/60Hz
* Main unit dimensions and weight: W330 x D633 x H565mm, 66.0kg
* Diaphragm pump: W145 x D256 x H217mm, 4.5kg
* Accessories: Diaphragm pump, notebook PC (Windows 7),
DEBEN Chamberscope with T&R Stage (rotation; continuous, tilt -15 to 60 degrees)

Equipment Status
Instruction manual included
