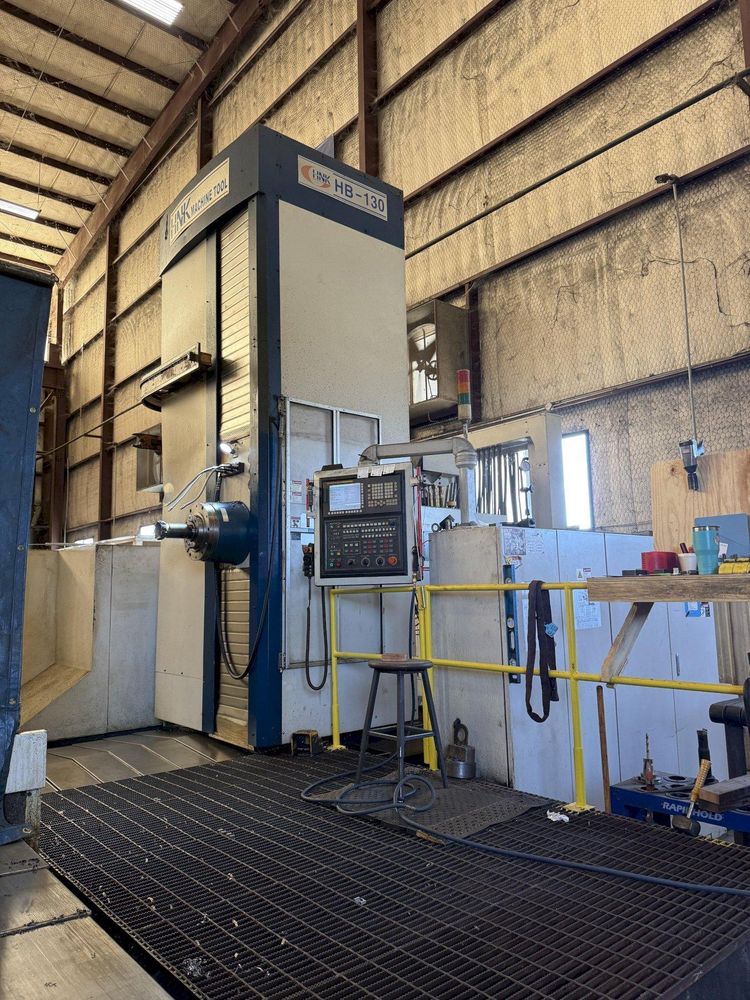

HNK HB-130 5.1 inches 2,500 RPM (3 Ranges)

X Axis Travel 118 inches
Y Axis Travel 90 inches
Z Axis Travel 63 inches
W Axis Travel 27.5 inches
CNC Control Fanuc 31i
Boring Spindle Diameter 5.1 inches
Distance Table Center to Spindle Nose 29.5 - 92.5 inches
Distance Spindle Center to Table Surface 0 - 90.5 inches
Rotary Table Size 63" x 70"
Rotary Table Indexing 0.001 degree with shot pin every 90 degree
Max Load on Rotary Table 33,000 LBS
Spindle Speed 5 - 2,500 RPM (3 Ranges)
Spindle Taper ISO 50
Spindle Power 35 HP
Automatic Tool Changer Positions 60
Max Tool Weight 55 LBS
Max Tool Length in Carousel 16"
Renishaw Tool Touch Probe
Renishaw Part Probe
Chip Conveyor
Coolant Through Spindle
Table Guards (currently not installed)
Spindle Oil Chiller
Heidenhain Scales
Machine Dimensions 285" x 307" x 197" high
Machine Weight 96,000 LBS
