Hofler HELIX 700 5400 rpm Gear Grinding Machine
Ref :
2729610-3-GO
Condition :
Used
Manufacturer :
Hofler
Model :
HELIX 700
Spindle Speed :
5400 rpm
Short Description :
Gear Grinding Machine
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

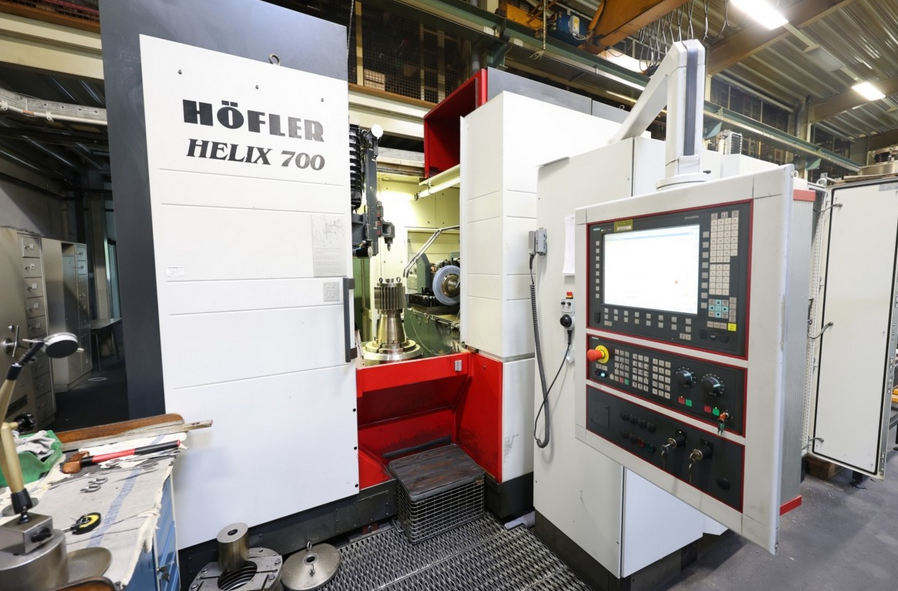

HÖFLER HELIX 700
Year: 2007
CNC control: Siemens 840 D
Tip circle diameter: 700 mm
Root circle diameter: 50 mm
Maximum module: 15 mm
Minimum module: 1 mm
Maximum profile height: 35 mm
Maximum gear width: 450 mm
Table load: 500 kg
Maximum helical angle (left/right): 45°
Grinding spindle speed: 0–5400 rpm
Grinding spindle drive power: 15 kW
Total power requirement: 30 kW
Machine weight: approx. 15 t
Dressing roller diameter: 160 mm
3 flanges included
Grinding oil compact filter system: Interlift
Documentation included
