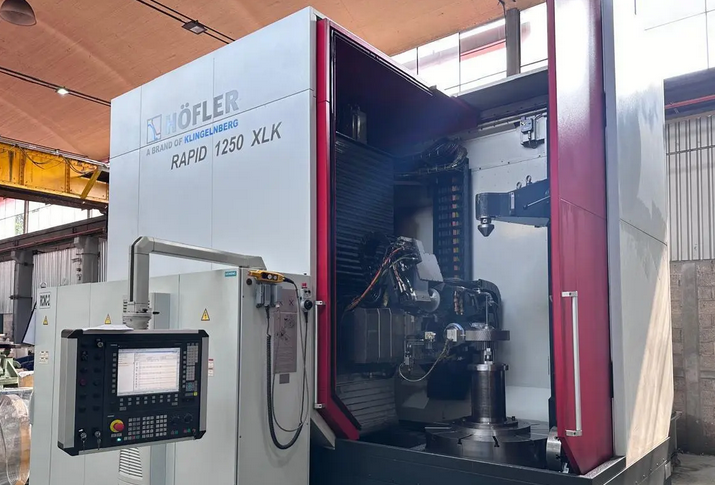

Hofler RAPID 1250 XLK Variable Speed Gear Grinder

HOFLER RAPID 1250 XLK
Year: 2015

Profile GrindingYES
Internal GrindingYES
Workpiece Diameter (max.)59.1"
Work Area Over Table (min.)19.7"
Work Area Over Table (max.)78.7"
Grinding Stroke (max.)59.1"
Distance Between Center Above Table (min.)19.7"
Distance Between Center Above Table (max.)78.7"
Module0.5 - 26
Grinding Wheel Speed (max.)17,000 RPM
Swivel Angle (min.)-45.0
Swivel Angle (max.)120.0
Grinding Wheel Diameter (min.)3"
Grinding Wheel Diameter (max.)11.8"
Grinding Wheel Width (max.)2.4"
Axial Travel59.1"
Table Diameter36.6"
Table Load (max.)8000.0
Table Rotation Speed (max.)30 RPM
Control ManufacturerSiemens
Generating GrindingYES
Internal GrindingYES
Workpiece Diameter (max.)59.1"
Work Area Over Table (min.)19.7"
Work Area Over Table (max.)59.1"
Grinding Stroke (max.)59.1"
Distance Between Center Above Table (min.)19.7"
Distance Between Center Above Table (max.)78.7"
Module0.5
Swivel Angle (min.)45.0
Swivel Angle (max.)120.0
Grinding Wheel Diameter (max.)11.8"
Grinding Wheel Width (max.)2.4"
Grinding Spindle38.5
Table Load (max.)8000.0
Table Hole Diameter36.6"
Control ManufacturerSiemens

Siemens Sinumerik 840D Control
Extended 1500 mm Gear Diameter
Extended Working Stroke (Y Axis) 1500 mm
CNC Dresser
**Prepped for Internal Grinding
BfG Best-Fit Grinding Software
High Speed Grinding
Steady Rest
Onboard Inspection (Profile, Lead, Spacing)
Upgraded Inspection for Scanning/Digital Measurement
Hydraulic Clamping System
Profile & Lead Modifications
Double-Helical Grinding
Grind from Solid
Root Grinding
Hydraulic Unit
Lubrication System
Chiller
