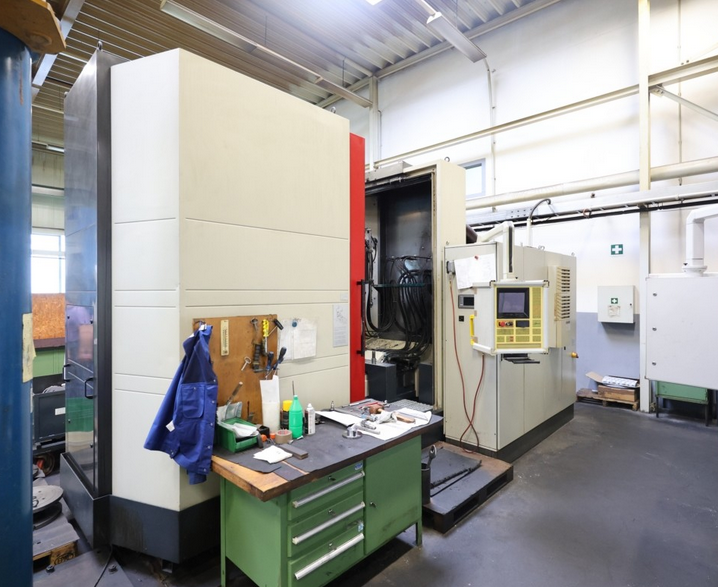

Hofler RAPID 1000 3100 rpm Gear Grinding Machine
Ref :
2729623-3-GO
Condition :
Used
Manufacturer :
Hofler
Model :
RAPID 1000
Spindle Speed :
3100 rpm
Short Description :
Gear Grinding Machine
Year(s) :
2001
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
HÖFLER RAPID 1000
Year: 2001
Tip circle diameter: 1000 mm
Root circle diameter: 50 mm
Maximum module: 18 mm
Minimum module: 1 mm
Maximum wheel diameter: 1000 mm
Gear width: 630 mm
Maximum profile height: 41 mm
Maximum helical angle (left/right): 45°
Table diameter: 720 mm
Maximum table load: 1500 kg
Grinding wheel diameter min/max: 180 / 400 mm
Grinding wheel width: 60 (45/30) mm
Grinding spindle speed: 0–3100 rpm
Total connected load: 30 kVA
